Design Features
FW2 Series Compressed Air Nozzle features a high impact, flat fan distribution of compressed air. It produces a quiet, efficient, controlled flat fan distribution of compressed air.

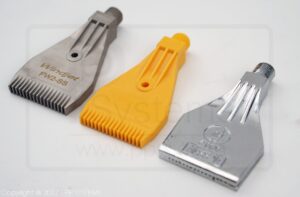

The air stream is discharged through 16 precision orifices that ensure uniform distribution and spray pattern integrity. It fits through 1/4 inch inlet connection with BSPT male screw thread. Two convenient mounting holes on the ABS model ensure correct positioning on the header or manifold or fixed applications, offering uniform distribution of air curtain. It is available in durable ABS plastic, aluminum alloy and stainless steel.
- ABS Plastic Nozzle withstands temperatures up to 77°C at 7 bar.
- While Aluminum Alloy Nozzle withstands temperature of 250°C and pressure about 10 bar
- Stainless Steel Nozzle withstands temperature of 300°C and pressure about 15 bar

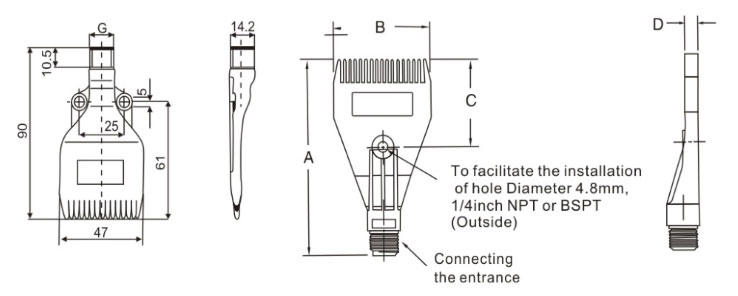

Dimensions

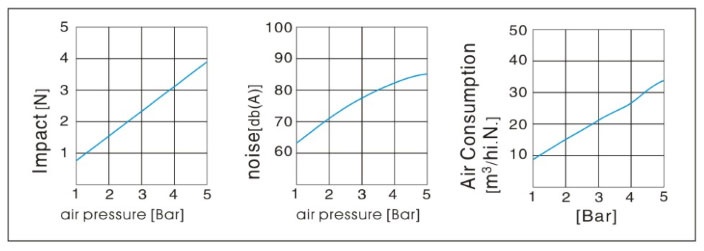

Performance Data
Application
- Parts cooling
- Parts drying
- Parts washing
- Material moving
- Threading
Ordering Information
FW2-AL Aluminum alloy material
FW2-ABS Plastic material
FW2-SS Stainless steel material
