PhoenixTM 20-Channel l Precision Beyond Standards for Paint Curing Temperature Measurement
The PhoenixTM Oven Temperature Profile System from the UK is the definitive answer for modern industrial coating. Designed to overcome the limitations of traditional systems, we empower your business with a professional Easy-to-use Oven Profiler that ensures sustainable quality through 7 Pillars of Excellence:

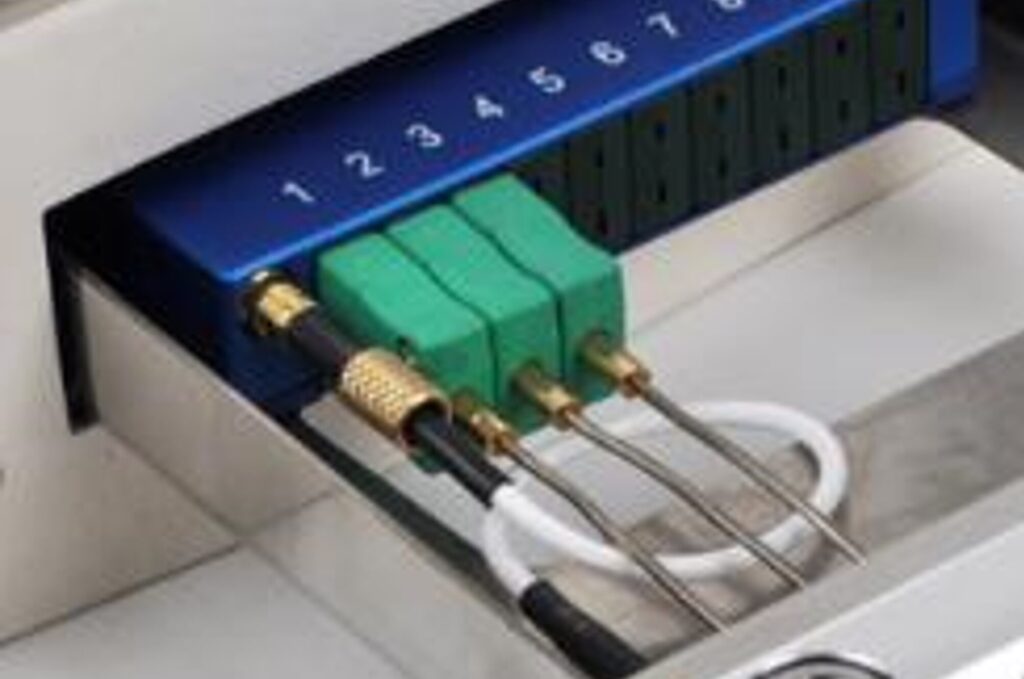

- High-Durability Alloy Construction: The data logger is encased in a premium aluminum alloy shell, ruggedly engineered to withstand high-temperature environments and heavy industrial use.
- Contamination-Free Paint Line Design: Fully compliant with global standards, our system is 100% Silicone-free, ensuring zero contamination and a flawless finish for every workpiece.
- Versatile Probe Selection: Specialized thermocouples are available for every surface type—metallic or non-metallic—guaranteeing high-precision data for even the most complex shapes
- Intelligent Cure Analysis Software: Our Easy-to-use Oven Profiler software features advanced “Cure Analysis,” providing precise data on paint maturity with unlimited user licenses and lifetime feature updates.
- Expert Consultation & Training: Gain a competitive edge with professional guidance and hands-on training from our veteran engineers, who bring decades of experience in the finishing industry.
- Rapid After-Sales Support: We offer comprehensive preventive maintenance and factory-standard calibration to ensure your equipment maintains world-class accuracy year after year.
- Local Stock for Business Continuity: With a full inventory of products and spare parts ready for immediate dispatch from our Thailand warehouse, your production remains seamless and uninterrupted.
"The Future of Thermal Profiling: Transcending Traditional Limits toward Excellence."
Experience the Next Level of PhoenixTM Technology with 20 Measurement Points
Redefining Paint Curing with Real-Time Accuracy.
PTM1-210-K-LT | 10-Channel Data Logger
Elevate thermal profiling performance in your industry with a 10-channel data logger engineered for precision and durability.
Built with a robust aluminum alloy housing, the PTM1-210-K-LT is designed to withstand high-temperature environments while delivering high accuracy of ±0.3°C across the full operating range.
Supports high-speed data logging at 0.2-second intervals, combined with a large memory capacity of up to 3.8 million data points, enabling detailed and reliable thermal profile analysis.
Fully optimized for efficient temperature profiling and compliant with CQI-12 standards, meeting the stringent requirements of the global automotive components industry.
Say goodbye to high maintenance costs from proprietary built-in batteries. The PhoenixTM architecture is designed to operate on two standard AA alkaline batteries, which are easy to source and replace.
This allows instant battery replacement, minimizes production line downtime, and significantly reduces maintenance costs.
RF Telemetry Transmits Wireless Temperature Data from Inside the Oven
Analyze Profiles in Real Time. Adjust Your Oven. Decide Instantly.
| Specifications | Details |
| Model | PTM1-220-K-LT |
| Channels | 10 Channels (Type K Thermocouple) |
| Measuring Range | 0°C to 500°C |
| Accuracy | ±0.3°C |
| Resolution | ±0.1°C |
| Memory Capacity | 3,800,000 Data Points |
| Sampling Interval | User-selectable from 0.2 seconds to 60 minutes |
| Max Ambient Temp | Up to 80°C (Internal Logger Temperature) |
| Battery Type | 2 x ‘AA’ Standard Alkaline |
| Communication | USB Cable (Included) |
| Dimensions | 200mm (L) x 98mm (W) x 20mm (H) |
Live real time ‘Thru-process’ Temperature Profiling
TXR-S-TX | Real-Time Temperature Profiling Across the Entire Production Process
PhoenixTM RF Telemetry System – Real-Time Paint Curing

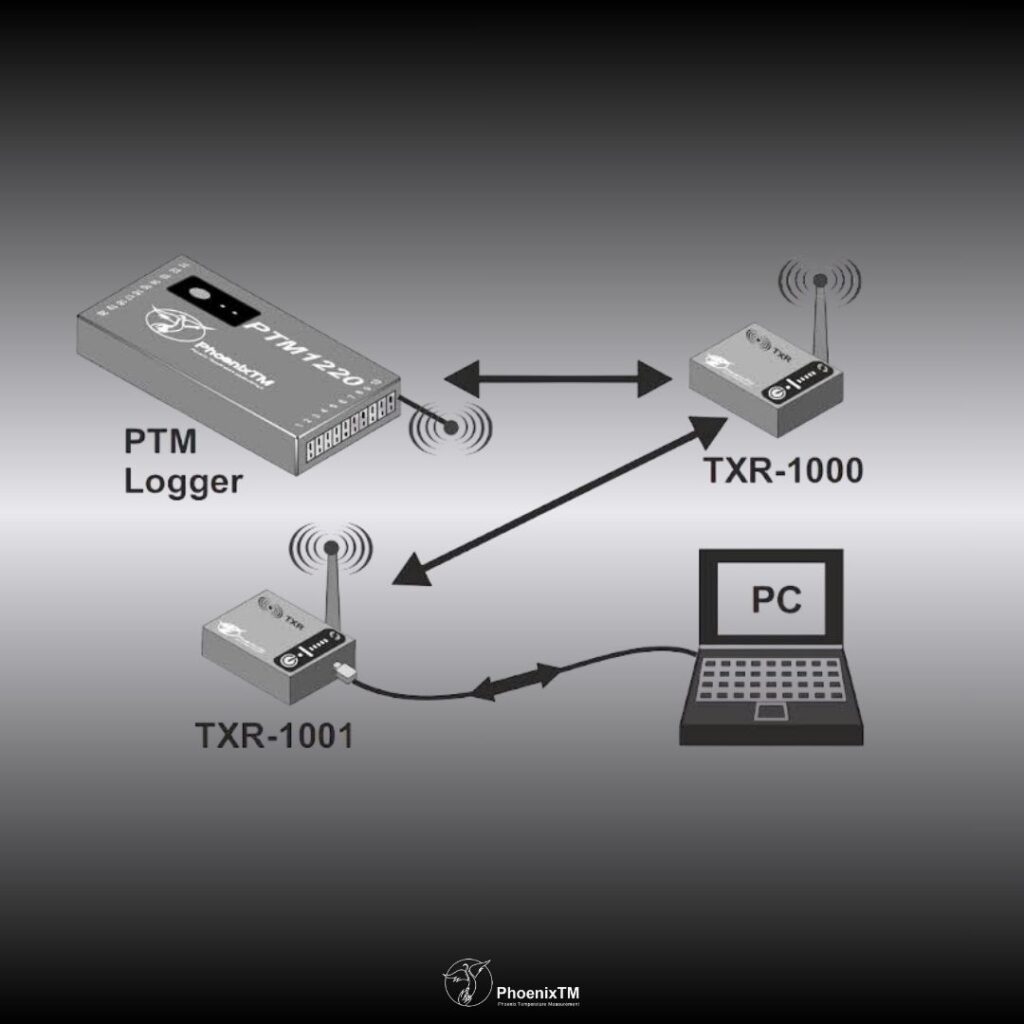

Wirelessly transmits temperature data directly from inside the oven.
View live temperature graphs without waiting for the product to exit the oven.
Analyze instantly and make decisions in real time.
Adjust oven parameters on the fly.
Complete new model setups faster and keep production running without interruptions.

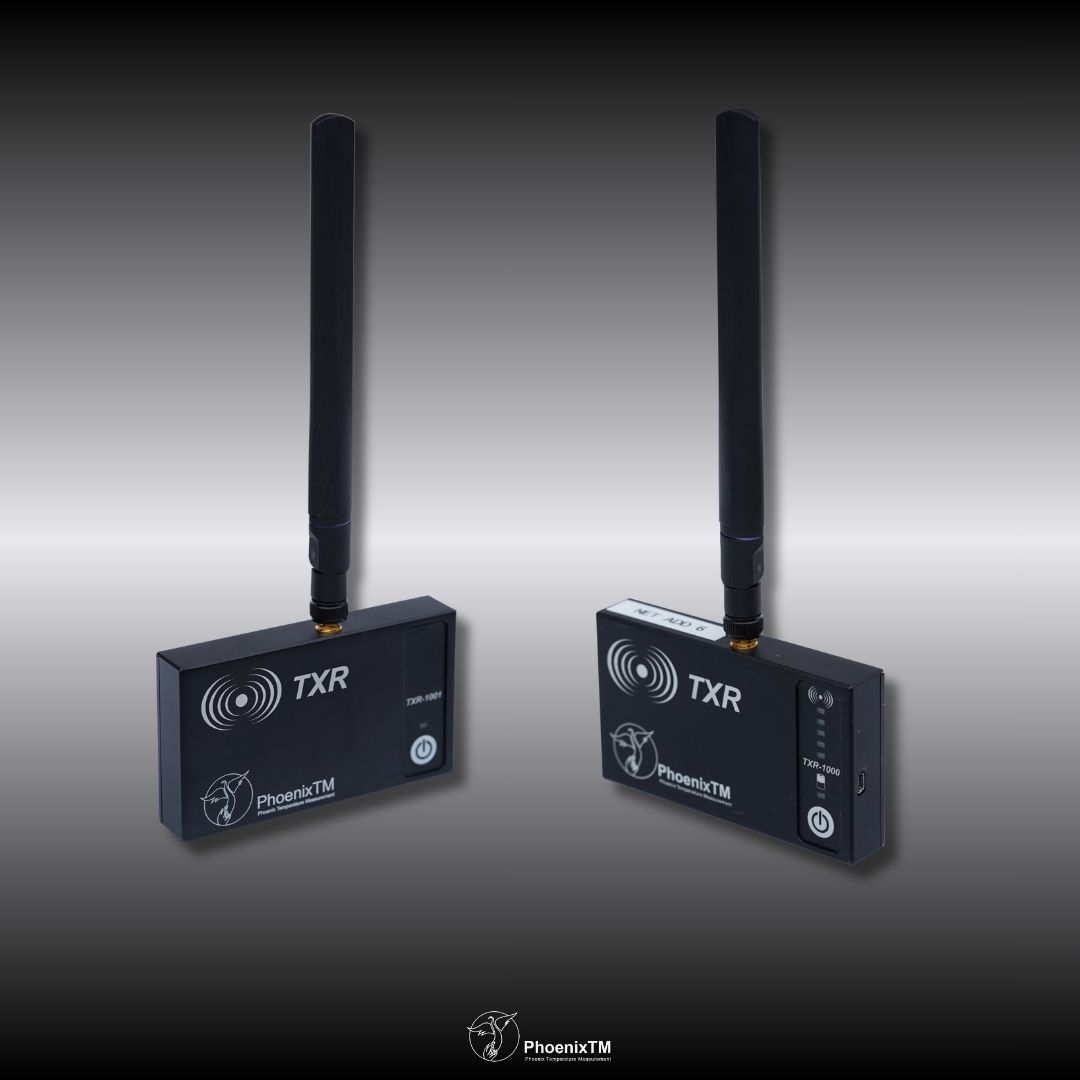

RF Transmitter
SKU TXR-PTM-TX
RF Co-ordinator
SKU TXR1001-TX
RF Router
SKU TXR1000-TX
| Specification | Details |
|---|---|
| RF Frequency | 2.4 GHz |
| Power Output | +3 dBm |
| Data Rate | 250 Kbit/s |
| Maximum Update Rate | 1 second |
| Transmission Range (Line of Sight) | ≥150 m |
| Power Supply (Coordinator) | USB (via PC) |
| Power Supply (Transmitters/Routers) | 2 × AA batteries or USB adapter |
| Operating Ambient Temperature | -40 °C to +85 °C |
| Compatible Software | SW15 / SW25 / SW35 / SW45 |
| Key Technology | Two-way temperature data communication with catch-up capability to recover missing data, plus remote instrument control |

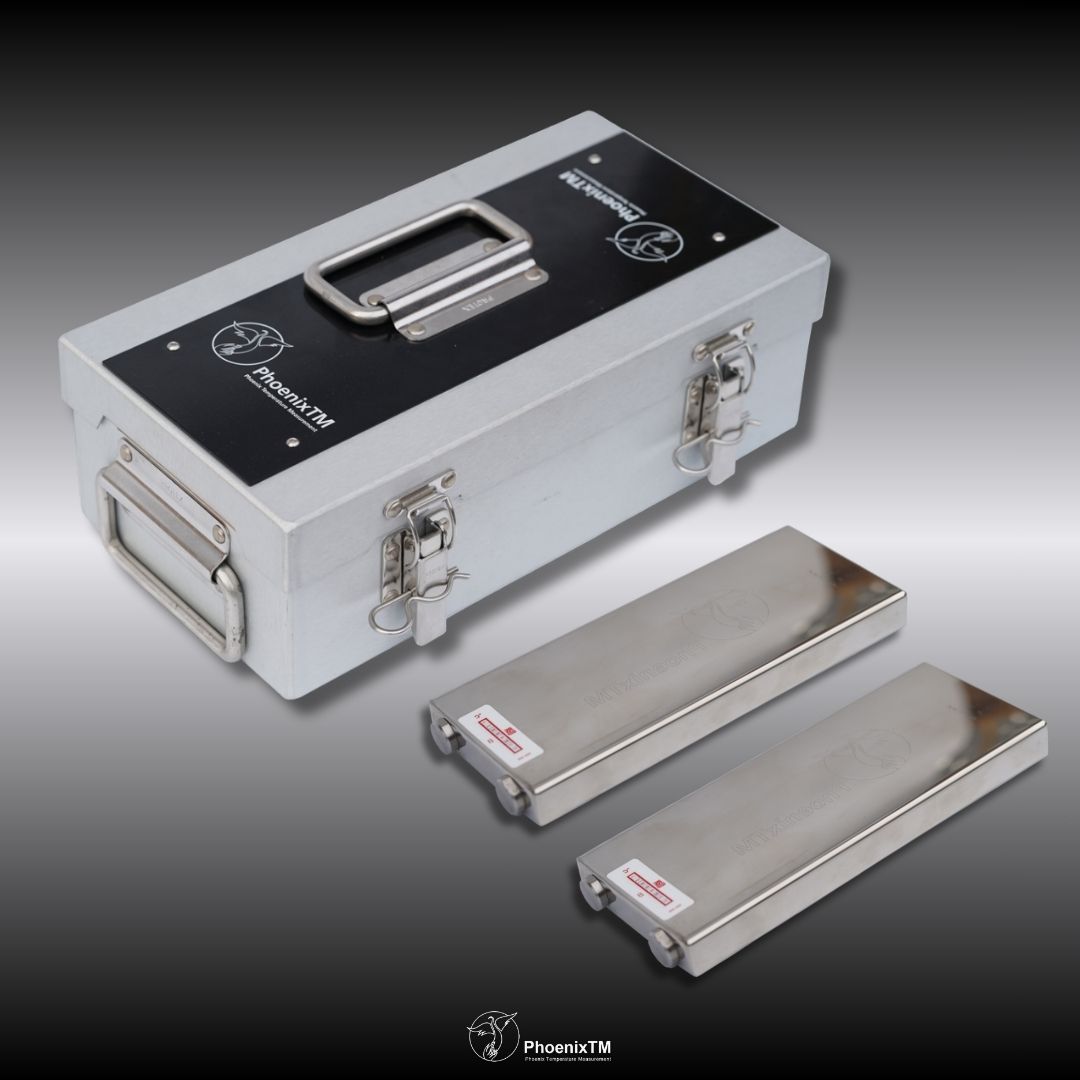

TS04 Series | Advanced Thermal Barrier for Painting & Coating
100% Silicone-Free: Premium materials ensure zero contamination and no surface defects—safe for all paint and powder coating lines.
Microporous Insulation: Superior heat protection that outlasts standard white rubber or low-quality fiberglass alternatives.
All-Metal Heatsink: High impact and heat resistance. Engineered to outlast plastic models for heavy industrial use.
| Product Attribute | Details |
| Product Code | TS04-135-1 |
| Body / Heatsink Material | Stainless Steel |
| Data Logger Capacity | 20 Channels |
| Dimensions (mm) | 135 (H) x 185 (W) x 370 (L) |
| Weight (kg) | 9.8 kg |
| Oven Temperature (°C) | Thermal Duration (Hours) |
| 100°C | 16.0 Hours |
| 150°C | 7.0 Hours |
| 200°C | 4.8 Hours |
| 250°C | 3.8 Hours |
| 300°C | 3.0 Hours |
High Grade Material: Rugged Construction. Engineering Excellence. Built to Last.
Lid Steel Plate: Quick magnetic probe attachment.
Handling Easy: Carry/hang handle with secure spring-clip latches.
Industry Standard: Our top-selling model for paint lines. In stock now.
"Superior Durability. Modular Maintenance. Maximum Longevity. — Redefining Thermal Profiling Standards."
Thermocouples | High-Performance Sensors for the Finishing Industry
- High Accuracy: Built to ANSI MC96.1 Special Limits, guaranteeing precision of ±1.1°C or ±0.4% of reading.
- High Temp Support: Operating range up to 250°C—specifically optimized for the powder coating industry.
- High Savings: Modular Magnetic and Clamp probes allow you to replace only the cable if damaged, significantly reducing long-term maintenance costs.
| Probe Type (Function) | Product Code (2.0m) | Primary Application | Suitable Workpieces |
| Adhesive Patch | TC55-200-K | Fastest response for Product & Air | Ultra-thin parts, Cans, PCBs, Plastics |
| Exposed Junction | TC54-200-K | Multi-purpose Product & Air; durable & fast | Plastics, Composites, Taped or inserted sensing |
| Magnetic Surface | TC50-200-K | Measures Product Surface via magnetic attachment | Ferrous metals (Steel), 1.5mm thickness or more |
| Magnetic Air | TC51-200-K | Measures Oven Air near the product surface | Ferrous metals (Steel) |
| Clamp Surface | TC52-200-K | Measures Product Surface via edge clamping | Aluminum / Non-ferrous, 1.5mm thickness or more |
| Clamp Air | TC53-200-K | Measures Oven Air via edge clamping | Any workpiece with a clippable edge |
| Washer Probe | TC56-200-K | Screw-mount for repeat testing & high stability | Metallic parts, Tubular frames, 1.5mm+ thickness |
⚠️ Precision Matters: Using unsuitable probes poses a risk of equipment damage and undetected data inaccuracies. Not sure which one to choose? Contact our engineers for a free consultation.
Thermal View Finishing Software
Intelligent Paint & Coating Cure Analysis
In the paint and surface finishing industry, time and temperature are the critical factors that determine whether a coating achieves proper adhesion — or results in costly defects.
Thermal View Finishing is purpose-built software designed specifically for analyzing paint and powder coating cure processes, with simplicity and clarity as its top priorities.
Developed exclusively for Paint & Powder Coating Cure Process analysis, the software focuses on:
👉 Ease of use
👉 Clear, actionable data
👉 Accurate curing evaluation
📈 Why Choose Thermal View Finishing for Your Curing Process?
1. Simplicity – Designed for Immediate Use
The software eliminates unnecessary complexity, providing only the essential tools required for real-world curing analysis.
Ideal for QC teams, technicians, and process engineers
Fast learning curve — ready to use on-site
Reduces errors caused by complicated configurations
2. Clarity – Visualize Your Cure Process with Confidence
Full-screen temperature profile display (Paint / Cure Profile)
Clear visualization of the Curing Window and temperature behavior
Easily identify process risks such as under-curing or over-baking
3. Time at Temperature Analysis – The Heart of the Curing Process
Instantly determine how long the product remains within the specified temperature range (Curing Time)
Directly compare results with paint or powder manufacturer specifications
Minimize quality risks and reduce warranty claims
This feature ensures every curing cycle meets defined performance requirements with confidence.
4. Advanced Cure Analysis Tools
Phoenix Factor (PF)
Converts the entire temperature profile into a single curing performance index.
PF = 1 : Theoretical optimal cure
PF < 1 : Undercure
PF > 1 : Overcure
Graphical Cure / Cure Chart
Analyze Time @ Temperature graphically and compare directly with the paint manufacturer’s cure chart for immediate visual validation.
5. Process Templates & Oven Visualization
Create process templates that replicate real production lines and oven setups
Display part positions and probe locations inside the oven
Accurately identify hot spots and cold spots
Pinpoint process-related issues with precision
This enables deeper understanding of oven behavior and process performance.
6. Database & Reporting for Quality Control
Automatic storage of logger data into a structured database
Easy access to historical data for traceability
Flexible report generation (PDF, print, or email)
Add company logo, QA notes, and additional documentation
Ensuring full process transparency and audit readiness.
7. Productivity & Cost Saving – Improve Efficiency, Reduce Production Costs
Thermal View Finishing does more than display temperature graphs.
It provides real process insight, allowing manufacturers to understand actual curing behavior in depth.
This enables predictive problem-solving before defects occur.
Reduce scrap and rework caused by under- or over-curing
Minimize downtime from hidden process issues
Improve coating quality stability
Lower energy consumption by eliminating unnecessary over-baking
Increase production line productivity without additional equipment investment
📊 Comparison Overview
SW05 Thermal View (ฺBasic) vs SW45 Thermal View Finishing
| Feature | SW05 Thermal View (Basic) | SW45 Thermal View Finishing | Benefit |
|---|---|---|---|
| Full Logger Programming | ● | ● | Configure the data logger to match specific profiling requirements |
| USB Real-Time Analysis | ● | ● | Perform real-time data analysis via USB connection |
| RF & Bluetooth Real-Time | – | ● | Wireless real-time data analysis |
| Profile Splitting | – | ● | Separate multiple oven profiles for easier analysis |
| Temperature Data View | ● | ● | View individual measurement point data |
| Time @ Temperature | ● | ● | Verify time within specified temperature ranges |
| Max / Min / Mean Temperature | ● | ● | Analyze maximum, minimum, and average temperatures |
| Rise & Fall Slope | ● | ● | Monitor melt and flash-off behavior |
| Maximum Difference | – | ● | Evaluate temperature uniformity |
| Tolerance Curve | – | ● | Compare profile shape against defined tolerances |
| Reference Profile | ● | ● | Compare with historical profile data |
| Phoenix Factor (Index of Cure) | ● | ● | Evaluate curing performance using a single index value |
| Graphical Cure (Time @ Temp) | – | ● | Visual Pass/Fail curing validation |
| Graphical Cure (Cure Chart) | – | ● | Advanced cure analysis based on manufacturer cure charts |
| Process Template Files | – | ● | Simulate real production line conditions |
| Product Library | ● | ● | Display probe positions on actual products |
| Coating Library | – | ● | Store coating parameters to reduce repetitive setup |
| Oven Library | – | ● | Visualize oven layout and temperature zones |
| Database Management | ● | ● | Structured and organized data management |
| Customized Reports | ● | ● | Generate reports in preferred formats |
| Password Security | – | ● | Prevent unauthorized data modification |
| Calibration Certificate | ● | ● | Instantly view and print calibration certificates |
🛡️ Maximum Confidence: Support & Expertise from PP Systemsa
At PP Systems, we pair superior tools with the right skills. Our support programs empower users to analyze coating results precisely and solve real-world production challenges.
Tailored Step-by-Step Training
We offer customized learning programs across three levels of professional mastery:
Level 1: Fundamentals – Master thermal parameters, logger configuration, and data management to ensure total data integrity.
Level 2: Graph Interpretation – Identify critical “Time at Temperature” data points to guarantee a perfect finish.
Level 3: Advanced Analysis – Evaluate oven efficiency and uniformity to ensure consistent quality in every batch.
Professional Reporting – Generate high-level reports compliant with Qualicoat, ISO, and CQI-12 to verify quality standards for your clients.
🔎 Continuous Online Support & Expert Review
We provide ongoing support to ensure your production remains seamless and error-free:
Data Verification: Our engineers provide online cross-checking to ensure your thermal profiles are accurate and reliable.
Remote Troubleshooting: Immediate software assistance via remote access minimizes downtime and keeps your operations running.
Online Refresher Courses: Keep your team sharp with sessions for new staff or updates on the latest Thermal View features.
Consulting for Improvement: We go beyond the numbers, offering actionable advice on adjusting temperatures or belt speeds to maximize efficiency and energy savings.
Turning Data into a Competitive Advantage Combining PP Systems’ expertise with PhoenixTM’s technology, we transform raw data into peak production standards every day.
"Continuous learning leads to superior results. Partner with us to elevate your team’s expertise and achieve total precision in every thermal profile."
