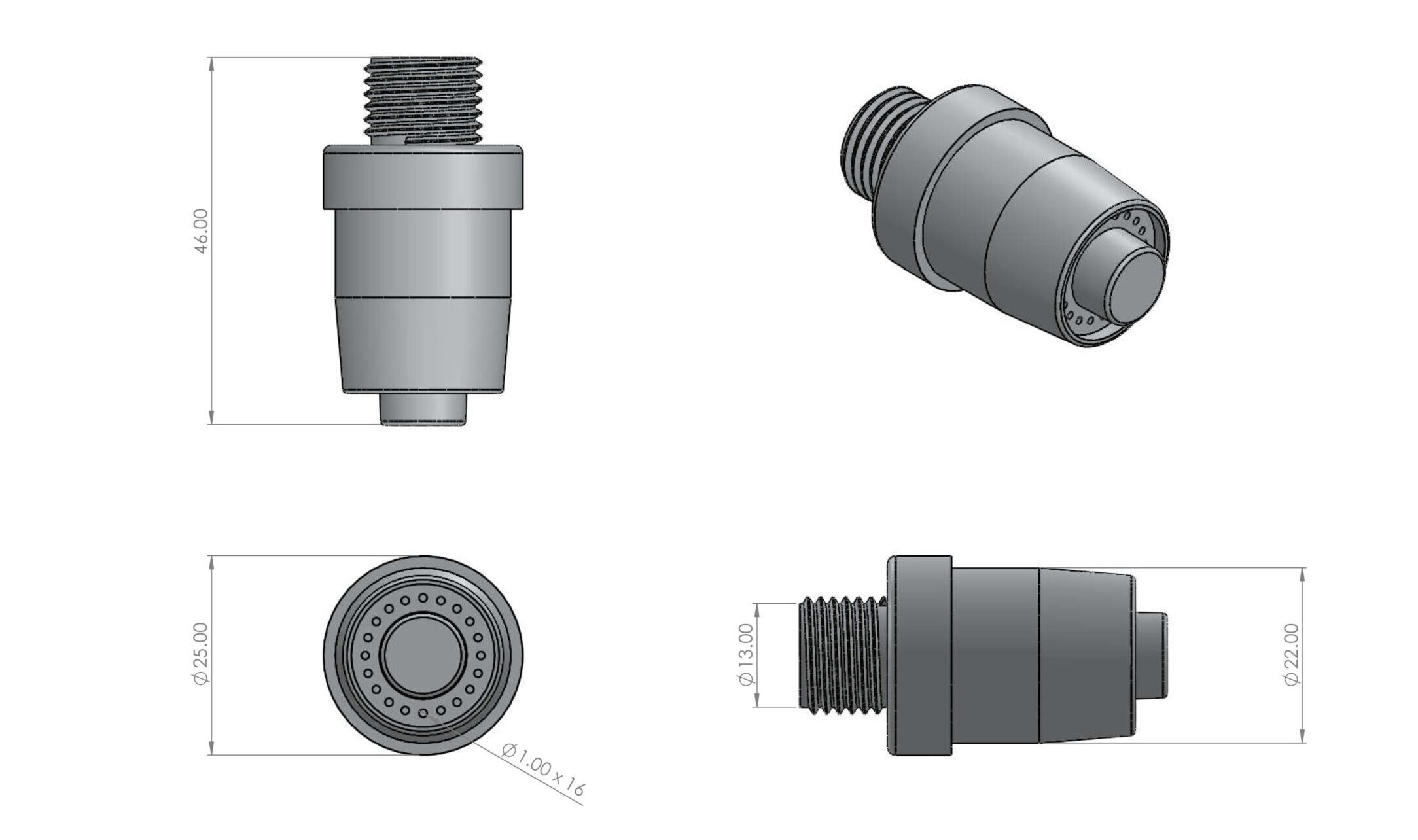

FW1 Aluminum Alloy Round Stream Compressed Air Nozzle, 16 Orifices, 1/4" BSPT
Description
FW1 Aluminum Alloy Round Stream Compressed Air Nozzle is an industrial air nozzle manufactured from high-quality aluminum alloy, providing excellent strength, lightweight construction, superior heat dissipation, and long-lasting durability.
The nozzle is engineered to produce a Round Stream Air Pattern through 16 precision air orifices, delivering a high-impact, concentrated air stream with excellent directional accuracy. This design ensures efficient and precise blow-off performance, making it ideal for applications that require focused airflow or high-impact air cleaning.
The FW1 nozzle is suitable for a wide range of industrial applications, including cooling, drying, blow-off cleaning, and water blow-off. It is also ideal for use in conveyor systems, automated machinery, and production processes that require high-performance compressed air for continuous operation.
The nozzle features a 1/4″ BSPT male threaded connection for quick and secure installation. It is designed to withstand operating temperatures of up to 250°C and operating pressures of up to 15 bar, making it an ideal solution for demanding industrial environments requiring reliable, high-performance compressed air nozzles.
Technical Specifications
| Specification | FW-ABS | FW1-AL |
| Image |  |  |
| Air Outlet Holes | 16 Holes | 16 Holes |
| Material | ABS Plastic | Aluminium Alloy |
| Thread Size | 1/4″ BSPT | 1/4″ BSPT |
| Maximum Operating Temperature | 77°C | 250°C |
| Maximum Operating Pressure | 7 Bar | 15 Bar |
| Airflow Pattern | Round Stream | Round Stream |
| Recommended Applications | General air blowing, drying, cleaning, and cooling applications | High-temperature, high-pressure, and heavy-duty industrial applications |
| Key Features | Lightweight, corrosion-resistant, cost-effective | Robust construction, high heat resistance, long service life |
Key Features
- Manufactured from high-quality aluminum alloy, providing excellent strength, lightweight construction, and superior heat dissipation.
- Produces a high-impact Round Stream Air Pattern for concentrated and precise airflow.
- Equipped with 16 precision air orifices to ensure consistent airflow distribution and efficient blow-off performance.
- Reduces compressed air consumption compared with open pipe blow-off.
- Maximum operating temperature: 250°C.
- Maximum operating pressure: 15 bar.
- Easy to install with a standard 1/4″ BSPT male threaded connection.
- Ideal for continuous industrial blow-off applications.
- Offers excellent corrosion resistance, long service life, and low maintenance requirements.
