Digital Temperature Control and Auto Curing Timer System for Powder Coating Ovens
In powder coating applications, both temperature control and curing time are critical factors that directly affect the quality of the finished product. If the curing temperature is too low or the curing time is insufficient, the powder coating may not fully adhere to the substrate. Conversely, excessive temperature or prolonged curing can degrade the coating’s physical properties and appearance. Precise control of these parameters is therefore essential to achieving consistent, high-quality coating results.
To address these requirements, PP Systems has developed a dedicated Temperature and Curing Time Control Panel designed for powder coating ovens utilizing up to six gas-fired infrared burners. The system incorporates a high-quality Digital Temperature Controller from FOTEK (Taiwan), a trusted brand widely recognized throughout Thailand’s industrial sector for its reliability and accuracy.
The controller provides precise temperature regulation while the integrated Auto Curing Timer automatically manages the curing cycle according to predefined process parameters. This ensures consistent curing performance and minimizes operator intervention.
In addition to temperature and time control, the panel offers comprehensive burner status monitoring, end-of-cycle alarm notification, and independent burner zone control. Each burner can be operated separately, providing greater process flexibility, improved temperature uniformity, enhanced operational safety, and reduced production errors.
Key Features
- Digital Temperature Controller by FOTEK, Taiwan
- Automatic Curing Timer Function
- Supports up to 6 Gas Infrared Burners
- Independent Burner Zone Control
- Real-Time Burner Status Indication
- End-of-Cycle Alarm Notification
- Accurate and Stable Temperature Control
- Improved Product Quality and Process Consistency
- Easy Operation and Maintenance
- Designed for Industrial Powder Coating Applications
""HEATwave delivers more than just temperature control systems—we provide process-driven solutions that enhance efficiency, reduce waste, and achieve better results at every stage of production."
Common Problems with Non-Standard Control Panels
Are You Facing Any of These Challenges?
Inaccurate Temperature and Curing Time Control
Poor temperature regulation and inconsistent curing cycles can result in incomplete curing, uneven coating quality, and increased production rejects.
Low-Quality Components with Limited Spare Parts Availability
Inferior components are more prone to failure and difficult to replace, leading to costly downtime and increased maintenance expenses.
Lack of Electrical Drawings and Technical Documentation
Troubleshooting, maintenance, and future system modifications become more difficult without proper documentation, reducing overall system reliability and production continuity.
HEATWave PP CTRL02T-1-S Version 4.0
The HEATWave PP CTRL02T-1-S Version 4.0 was specifically developed to address these challenges. Designed for powder coating ovens and industrial drying applications, the system delivers the accuracy, reliability, and durability required for demanding industrial environments.
The control panel utilizes industry-proven components from globally recognized brands, combined with a Digital Temperature Controller and an Auto Curing Timer to ensure precise control of both curing temperature and process time. This helps maintain consistent product quality and improves process efficiency.
In addition, the system includes comprehensive wiring diagrams, clearly identified terminal connections, and long-term spare parts availability. These features simplify maintenance, reduce downtime, and provide users with confidence throughout the entire service life of the equipment.

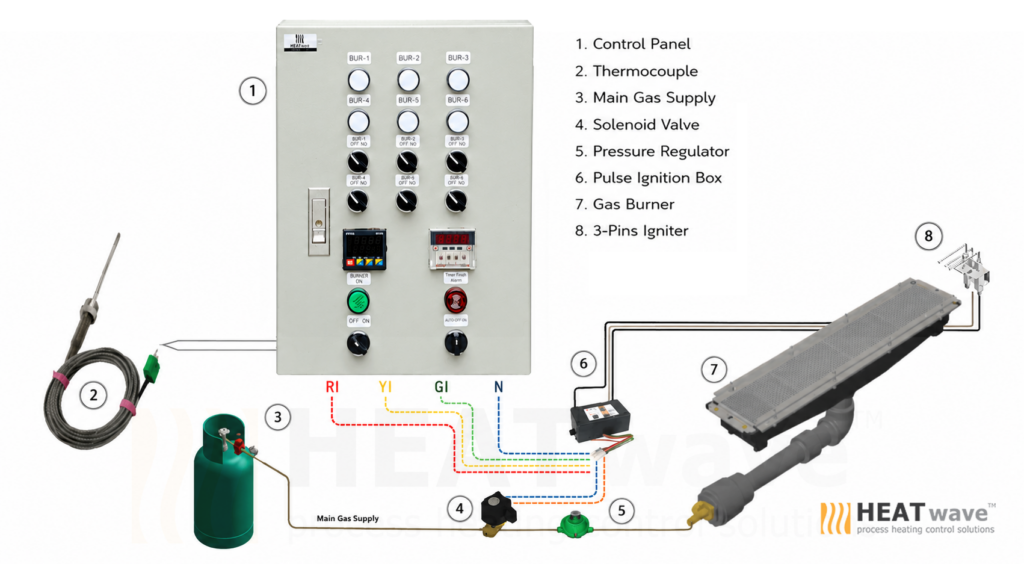

External Device Connections

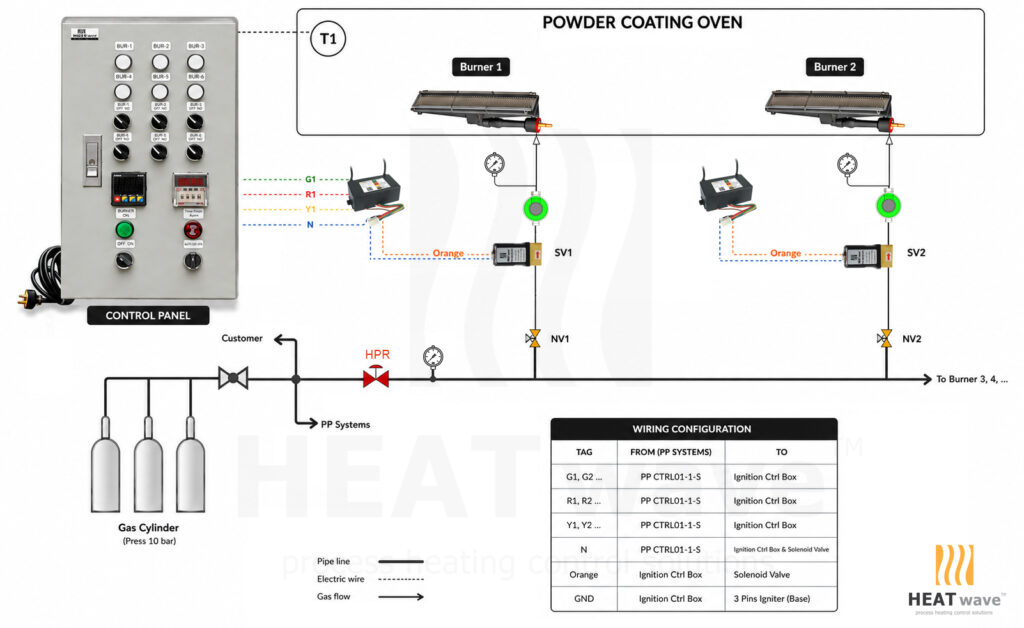

Spark Ignition Controller Terminal Connections
| Terminal | Connection | Description |
|---|---|---|
| G1 – G6 | Green Wire | Supplies 220VAC Line power to the Spark Ignition Controllers |
| R1 – R6 | Red Wire | 220VAC feedback signal indicating normal burner operation (Flame Detected) |
| Y1 – Y6 | Yellow Wire | 220VAC feedback signal indicating burner ignition failure (Flame Failure) |
| N | Blue Wire | Neutral connection for the Spark Ignition Controllers |
Operating Functions
| TEMP CONTROL | TIMER | Operating Description |
|---|---|---|
| OFF | OFF | • After the Main Switch is turned ON, the Temperature Controller displays the current temperature. • PV (Present Value) = Actual measured temperature. • SV (Set Value) = User-defined temperature setpoint. • The system is powered and ready for operation, but the burners remain disabled. |
| ON | OFF | • Burners No.1–6 are controlled according to the configured temperature setpoint. • When PV < SV, the gas valves and ignition system are activated, and the green status indicator illuminates. • When PV ≥ SV, the gas valves are de-energized and the status indicator turns off. • The burners will automatically restart when PV falls below SV. |
| ON | ON | • The Timer starts counting immediately when activated. • Burners operate under normal temperature control. • When the preset curing time expires, the burner system is shut down automatically and an alarm signal is activated. |
| ON | AUTO | • The Timer does not start counting immediately after activation. • The Timer begins counting only when the process temperature reaches the setpoint (PV ≥ SV). • Ideal for powder coating curing applications where curing time must start only after the product reaches the required temperature. • When the preset curing time expires, the burner system is shut down automatically and an alarm signal is activated. |
Compatible Devices and Accessories
| Model | Figure | Description | Specifications |
| HD IGN01 |  | Three-Electrode Ignition Probe | Spark ignition electrode with integrated flame sensing function for gas burner applications. |
| HW-IGN-002 |  | Pulse Ignition Controller with Flame Detection | • Input Voltage: 220VAC, 50/60Hz• Maximum Ignition Voltage: 16kV• Ignition Cable Length: 1.2–1.4 m• Integrated Flame Monitoring Function |
| HW-SV-025 |  | Gas Solenoid Valve | • Connection Size: 1/4″• Coil Voltage: 230VAC, 50Hz• Orifice Size: 2.5 mm |
| XD09 |  | Low-Pressure LPG Gas Regulator | • Outlet Pressure Range: 50–100 mbar• Connection Size: 1/4″ × 3/8″ NPT |
| NV-001 |  | Precision Needle Valve | • Connection Size: 1/4″ Female NPT• Material: Brass• Fine Flow Adjustment |
| 67CH/743 |  | High-Pressure Gas Regulator | • Adjustable Outlet Pressure: 0.3–2.4 bar• Connection Size: 1/4″ NPT |
| DS63A-0-2.5 |  | High-Pressure Gauge | • Pressure Range: 0–2.5 bar• Connection Size: 1/4″ NPT• Recommended for installation downstream of the high-pressure regulator |
| HW-PSG-100 |  | Low-Pressure Gauge | • Pressure Range: 0–100 mbar• Connection Size: 1/4″ NPT• Recommended for installation downstream of the XD09 low-pressure regulator |
Component Locations within the System

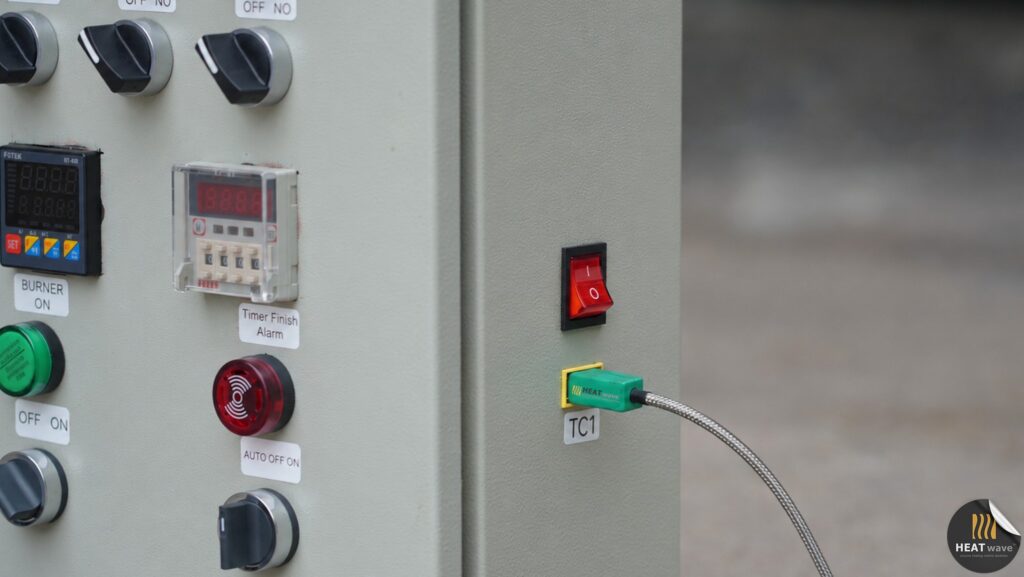

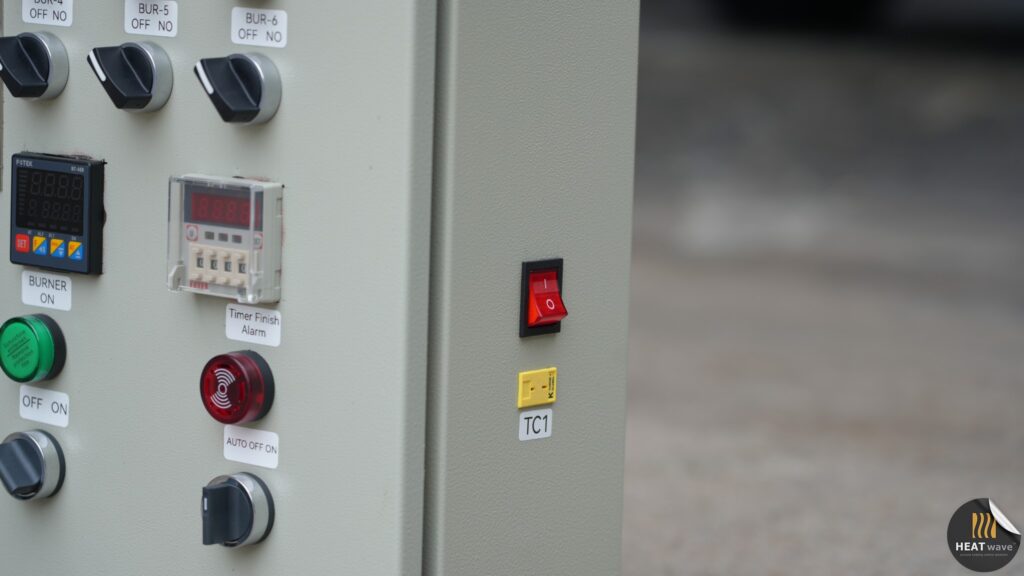

Side-Mounted Components
The control panel is designed with externally accessible connection points, allowing convenient installation, operation, and maintenance without opening the enclosure.
- Main Power Switch for controlling the primary power supply to the system.
- Type K Thermocouple Connector using an industry-standard miniature connector for reliable temperature measurement.
- ANSI Standard Green Type K Plug, with the smaller pin designated as positive (+) and the larger pin designated as negative (-).
- Supports various Type K temperature probes, including air temperature probes for oven monitoring and product temperature probes for workpiece measurement.
- Easy probe replacement and maintenance from outside the control panel, eliminating the need to access internal wiring.
- Improved safety and reliability by reducing exposure to electrical components during sensor installation and replacement.
