FW1 ABS Plastic Round Stream Air Nozzle, 16 Holes, 1/4" BSPT
Description
The Round Stream Air Nozzle is manufactured from high-quality ABS plastic and is designed for industrial air blowing applications requiring concentrated and uniform airflow. It improves the efficiency of cooling, drying, and the removal of dust, debris, and contaminants from products, machinery, and conveyor systems.
The nozzle features multiple precision air outlets that provide even air distribution, helping to reduce energy consumption while maximizing the effectiveness of compressed air usage. Its optimized airflow design also helps minimize noise levels and deliver accurate airflow direction, making it suitable for both localized blowing and continuous air blowing applications.
This air nozzle is ideal for a wide range of industrial processes, including conveyor systems, product cleaning, mold and component cooling, internal hole and cavity blowing, and drying operations after washing or surface coating. By improving airflow efficiency, it helps increase productivity, reduce process time, and enhance product quality throughout the manufacturing process.
Technical Specifications
| Specification | FW-ABS | FW1-AL |
| Image |  |  |
| Air Outlet Holes | ∅1mm x 16 Holes | ∅1mm x 16 Holes |
| Material | ABS Plastic | Aluminium Alloy |
| Thread Size | 1/4″ BSPT | 1/4″ BSPT |
| Maximum Operating Temperature | 77°C | 250°C |
| Maximum Operating Pressure | 7 Bar | 15 Bar |
| Airflow Pattern | Round Stream | Round Stream |
| Recommended Applications | General air blowing, drying, cleaning, and cooling applications | High-temperature, high-pressure, and heavy-duty industrial applications |
| Key Features | Lightweight, corrosion-resistant, cost-effective | Robust construction, high heat resistance, long service life |
Key Features
- Manufactured from high-quality ABS plastic, offering excellent strength, durability, and lightweight construction.
- Round Stream airflow design provides efficient and precise air distribution.
- Features 16 air outlet holes for improved airflow coverage and uniform blowing performance.
- Ideal for cooling applications in manufacturing and production processes.
- Suitable for drying operations after washing, coating, or surface treatment processes.
- Effective for blow-off applications, removing dust, debris, moisture, and contaminants from products and equipment.
- Compatible with conveyor systems and automated production lines.
- Helps optimize compressed air usage and reduce energy consumption.
- Easy to install with a standard 1/4″ BSPT threaded connection.
- Suitable for use in food processing, packaging, plastics, automotive, and general manufacturing industries.
Application
The ABS Air Nozzle is suitable for a wide range of industrial applications, including:
- Food and Beverage Industry
- Packaging Industry
- Automotive Industry
- Electronics Industry
- Conveyor Systems and Production Lines
- Dust and Debris Removal from Products and Components
- Cooling Applications in Manufacturing Processes
- Drying Operations in Production and Packaging Lines
- Product Cleaning and Blow-off Applications
- Surface Preparation and Post-Washing Drying Processes

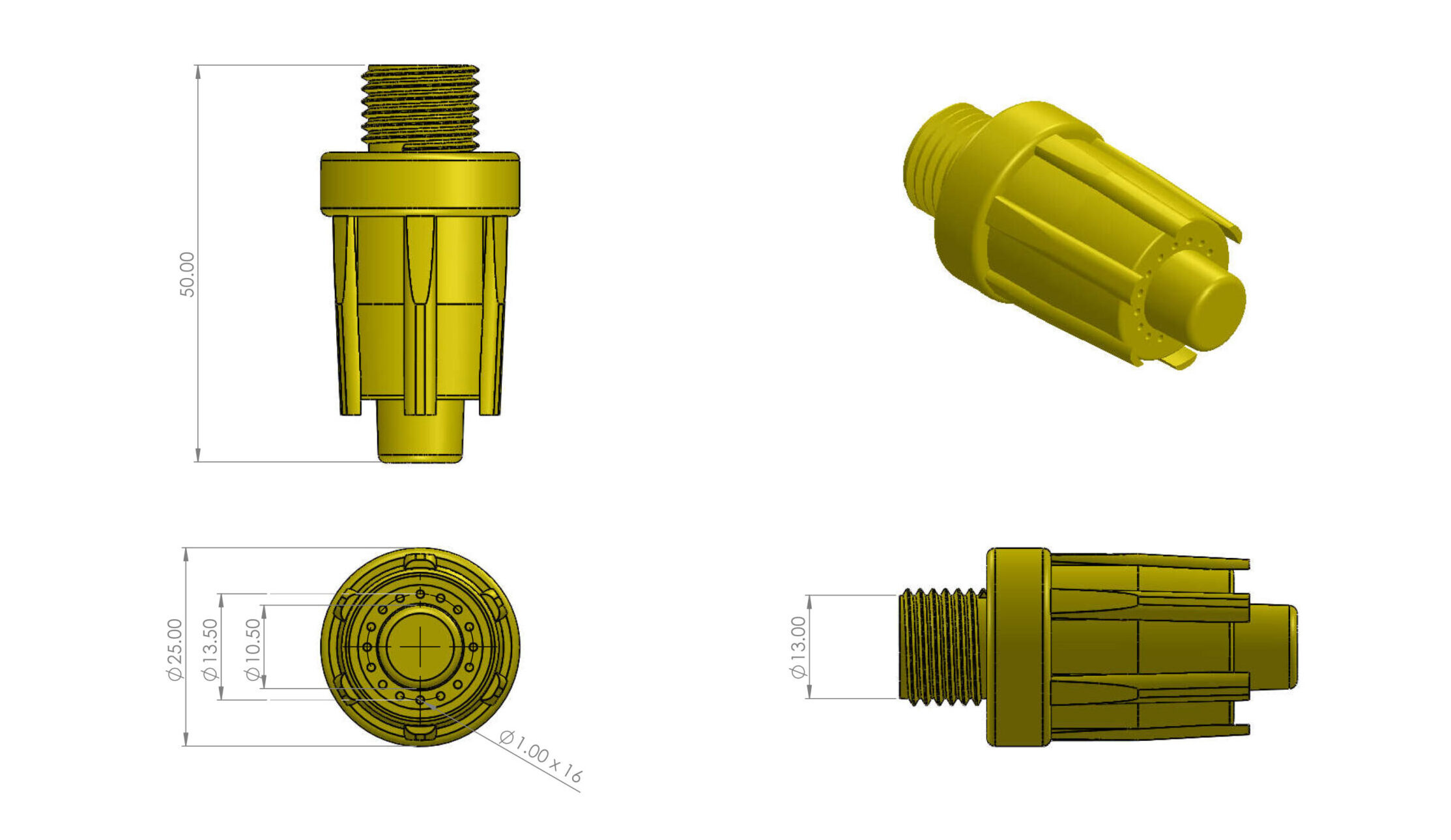

Drawing
Other Air Nozzle Models
Performance Information
Ordering Information
- FW1-AL → Aluminum alloy material
- FW1-ABS → Plastic material ABS
