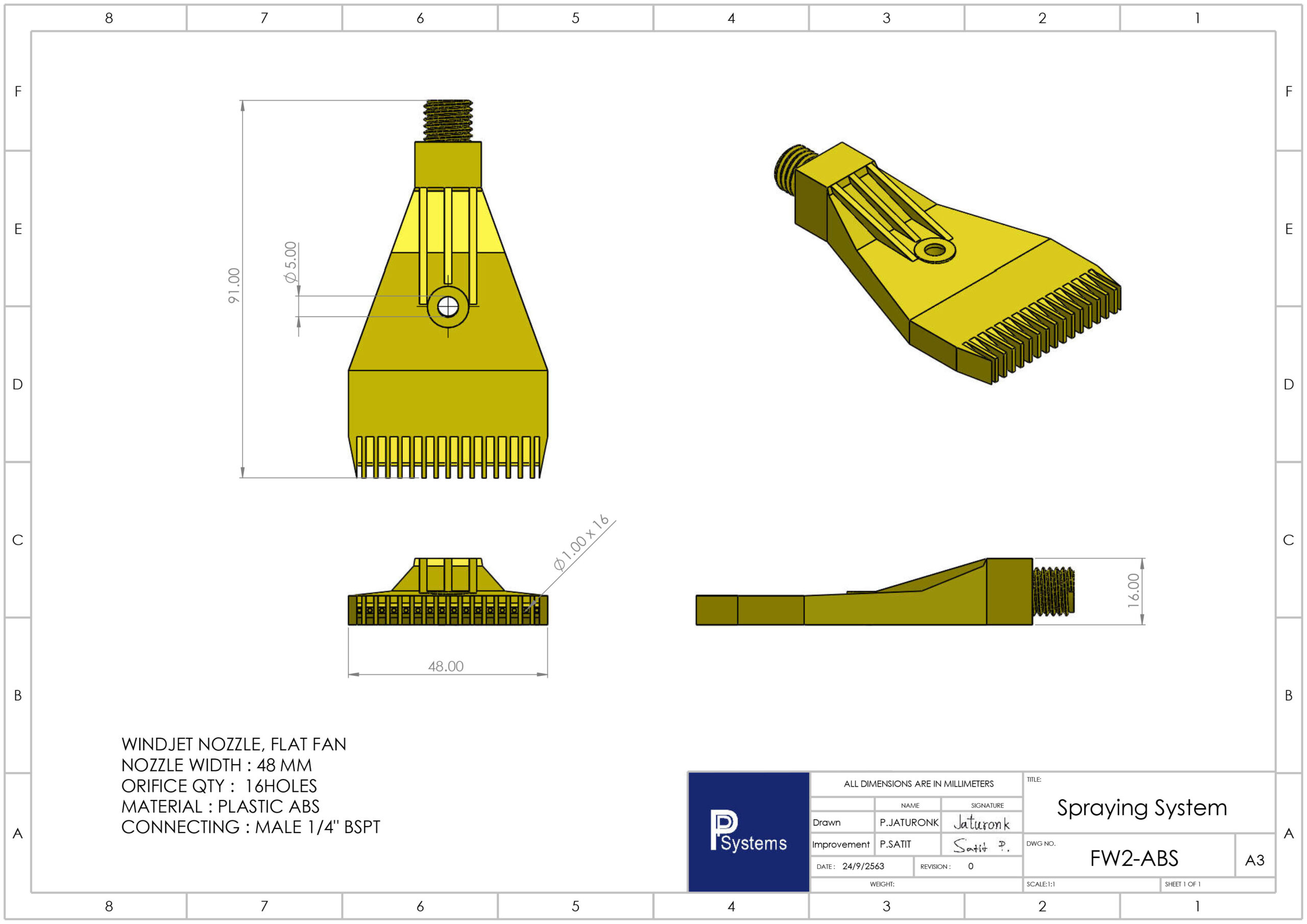

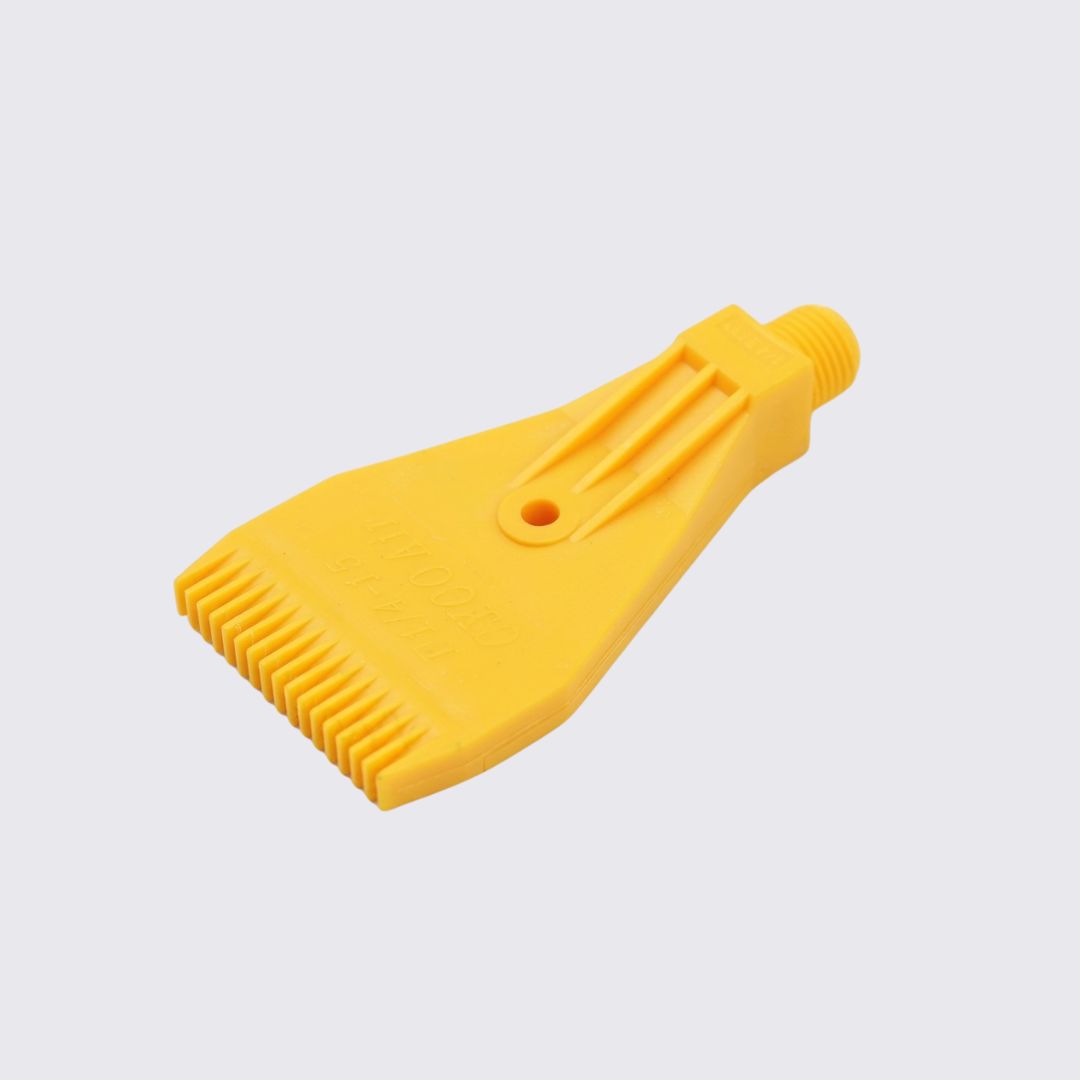

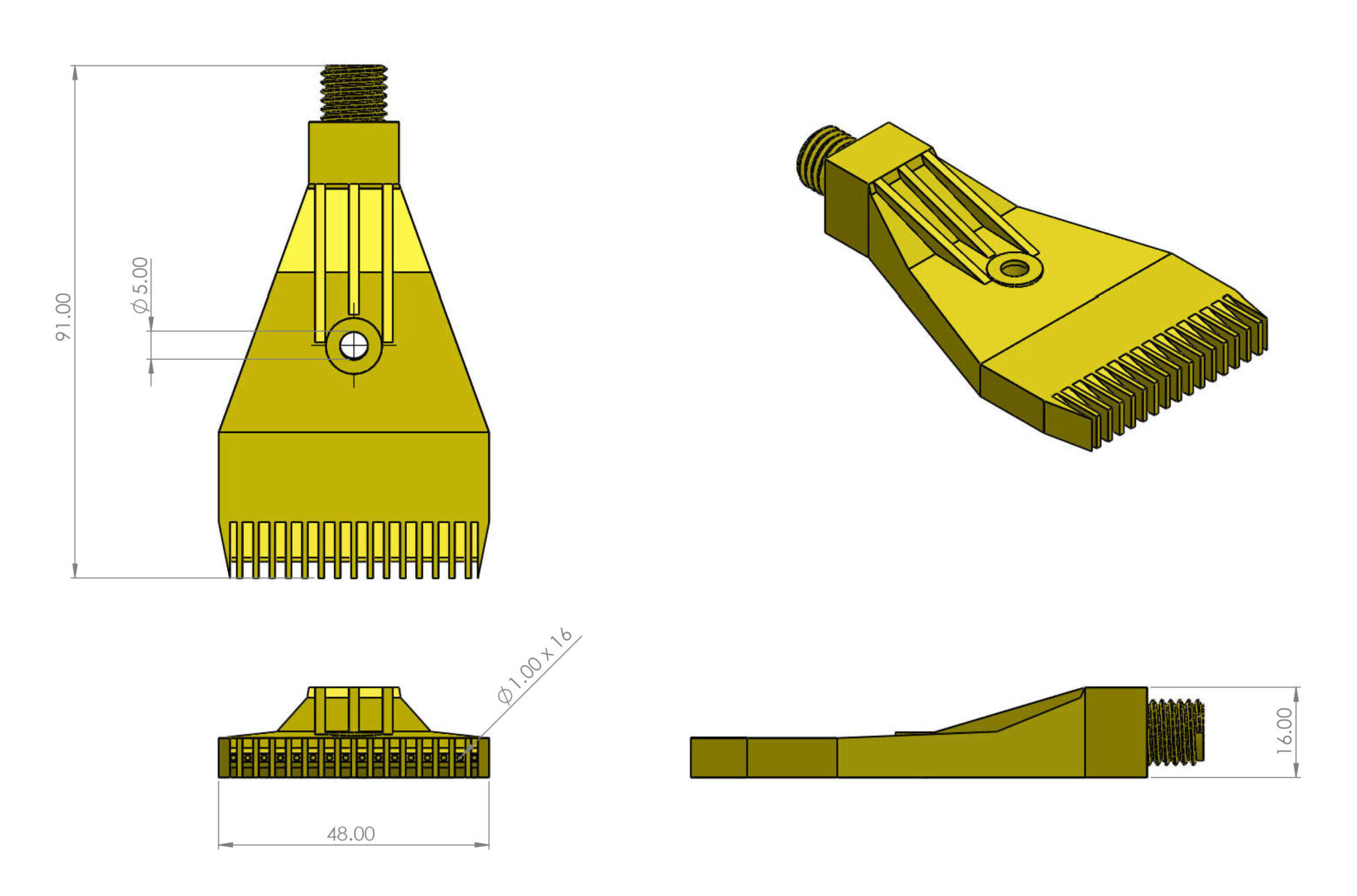

FW2 Flat Fan Air Nozzle, ABS Plastic, 16 Orifices, 1/4" BSPT
Description
FW2 Series Compressed Air Nozzle produces a high-impact Flat Fan air pattern with uniform air distribution and excellent directional control. It is specifically designed for industrial applications such as cooling, drying, blow-off, and cleaning, while delivering quiet, efficient, and energy-saving performance.
The air stream is discharged through 16 high-precision orifices, ensuring consistent airflow distribution and maintaining a stable air spray pattern across the target surface. This design improves blow-off efficiency while reducing compressed air consumption, making the FW2 Series an ideal solution for a wide range of industrial air applications.
The nozzle features a 1/4″ BSPT male threaded connection for quick and secure installation. The ABS plastic version is equipped with two mounting holes, allowing easy installation on headers, manifolds, or fixed mounting brackets. This configuration enables the creation of a uniform air curtain with consistent airflow distribution across the working area.
The FW2 Series is available in three material options to suit different operating environments:
- ABS Plastic
- Aluminum Alloy
- Stainless Steel
Each material offers different levels of temperature resistance, pressure resistance, corrosion resistance, and durability, allowing users to select the most suitable nozzle for their specific industrial application.
Technical Specifications
| Specification | FW2-ABS | FW2-AL | FW2-SS |
| Image |  |  |  |
| Air Outlet Holes | 16 Holes | 16 Holes | 16 Holes |
| Material | ABS Plastic | Aluminum Alloy | Stainless Steel |
| Air Pattern | Flat Fan Air Pattern | Flat Fan Air Pattern | Flat Fan Air Pattern |
| Thread Size | 1/4″ BSPT | 1/4″ BSPT | 1/4″ BSPT |
| Maximum Operating Temperature | 77°C | 250°C | 300°C |
| Maximum Operating Pressure | 7 Bar | 10 Bar | 15 Bar |
| Recommended Applications |
|
|
|
| Key Features | Manufactured from high-quality ABS plastic. Lightweight, corrosion-resistant, and cost-effective | Manufactured from high-quality aluminum alloy, offering excellent strength, lightweight construction, and high-temperature resistance | Energy-saving and noise reduction with high strength, durability, and a long service life made of genuine, rust-free stainless steel material. |
Key Features
- Manufactured from high-quality ABS plastic, offering excellent strength while remaining lightweight.
- Produces a Flat Fan Air Pattern for wide and uniform air coverage.
- Features 16 precision air orifices to ensure consistent and even airflow distribution.
- Helps reduce compressed air consumption while minimizing operating noise.
- Ideal for continuous industrial blow-off applications.
- Easy to install with a standard 1/4″ BSPT male thread.
- Withstands operating temperatures of up to 77°C.
- Rated for operating pressures of up to 7 bar.
Application
The FW2 Compressed Air Nozzle is suitable for a wide range of industrial applications, including:
- Cooling
- Drying
- Blow-off Cleaning
- Water Blow-off
- Conveyor Systems
- Food and Beverage Industry
- Packaging Industry
- Plastic Industry
- Automotive Industry
- Automation Systems
Performance Data
Ordering Information
FW2-AL Aluminum alloy material
FW2-ABS Plastic material
FW2-SS Stainless steel material
