Description
“PP Systems is the authorized distributor of ZCLOG Mini Data Loggers in Thailand.”

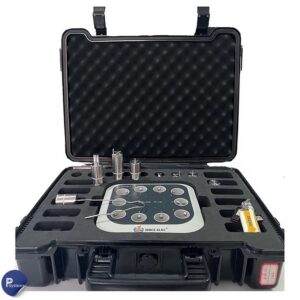

The ZCLOG wireless thermal validation system offers a comprehensive solution for monitoring and validating thermal processes. It includes:
A wide range of wireless data loggers for accurately measuring temperature, pressure, and humidity.
A dependable adapter for fast and efficient data downloading.
ZCLOG validation software with user-friendly features for setup, graphing, reporting, and data backup.
Product Features
- High accuracy and energy efficiency
- Available in various probe types
- Capable of withstanding high pressure and waterproof
- Multiple software options tailored to different needs
- Programmable sampling speed with customizable start, hold, and stop functions
- Easy maintenance, featuring self-replacement of batteries and calibration
DATA LOGGER
| MODEL | ZC02THS |
| TEMPERATURE RANGE | -40°C TO +125°C 0 – 100%RH * Humidity measurement valid up to 110 °C |
| ACCURACY | ± 0.3°C, ± 2.5%RH |
| POWER SUPPLY | REPLACEABLE 3.0V LITHIUM BATTERY |
| BATTERY LIFE | APPROXIMATELY 3 MILLION DATA |
| SAMPLING | 1 SECOND |
| MEMORY | 60,000 DATA POINT |
| DIMENSIONS | Ø 24.60 MM X H 64 MM |
| HOUSING MATERIAL | STAINLESS STEEL * For operating 0-5 Absolute Pressure |
