Flat Spray Nozzles for Cleaning and Surface Coating Applications
Flat Spray Nozzles from Uni-Spray Systems are engineered to produce a flat fan spray pattern that delivers high impact and uniform liquid distribution. They are ideal for cleaning, washing workpieces, surface preparation, and coating applications across a wide range of industrial processes. Designed to improve operational efficiency, these nozzles provide consistent spray coverage and reliable performance throughout the production process.
With extensive expertise in industrial spray nozzle technology, Uni-Spray Systems develops every nozzle model to meet the demands of real-world industrial applications. Each product is manufactured under strict quality control standards to ensure consistent spray performance, superior durability, and an extended service life. This commitment to quality gives users confidence in achieving reliable, efficient, and repeatable results in every application.
Features
- Reduces installation time and maintenance costs.
- Easy to install with a Snap-on locking design.
- No tools required for installation.

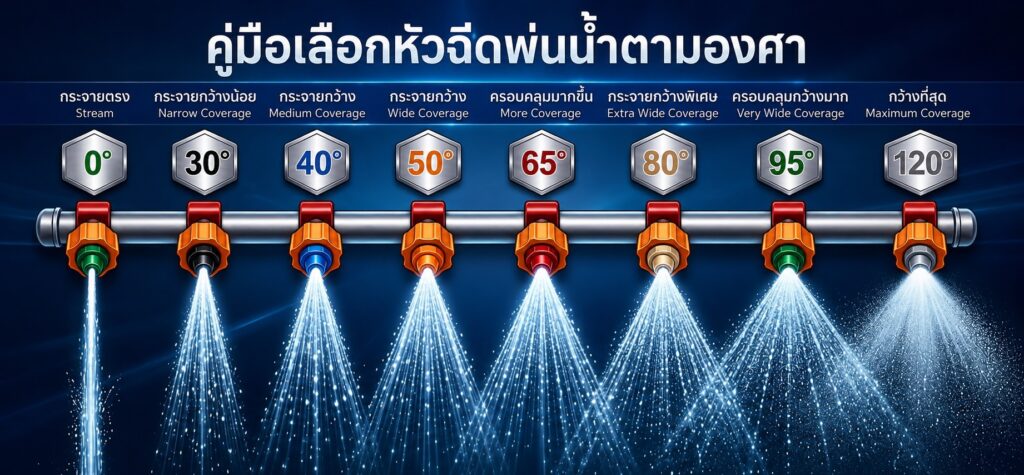

- Color-coded nozzles allow for quick and easy identification of the spray angle and flow rate.
- Fully compatible with and interchangeable with other clamp-on style nozzles, making replacement and system upgrades simple and convenient.

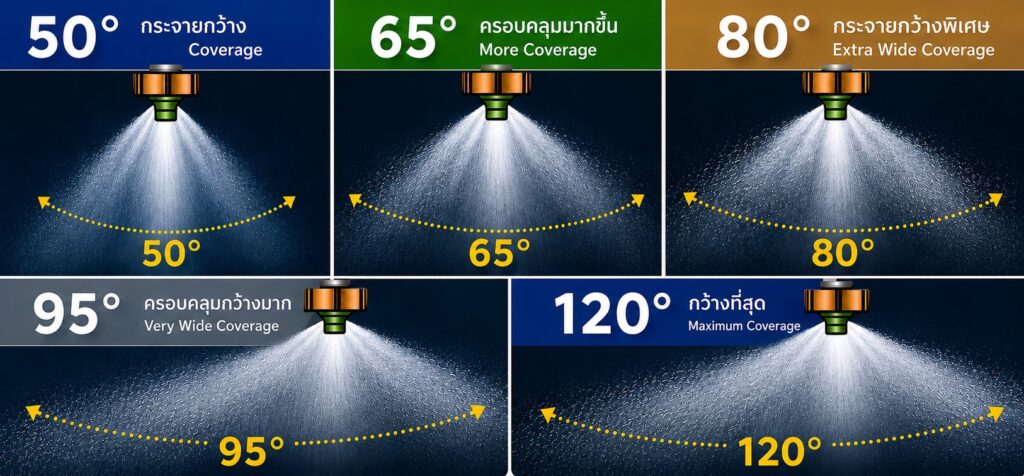

| Figure | Part No. | Spray Angle | Capacity (US) LPM at Bar | |
| 1.0 bar | 2.1 bar | |||

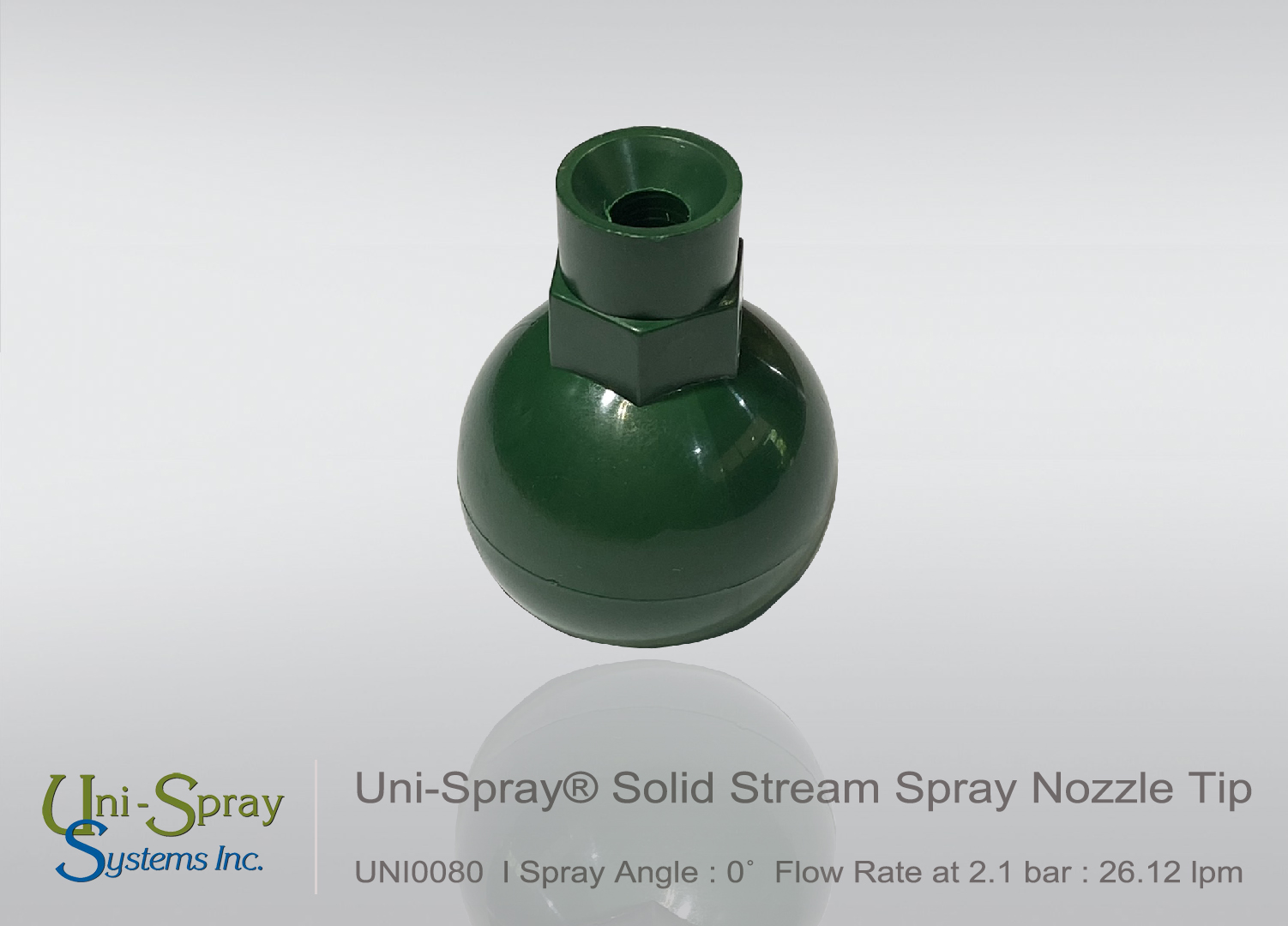

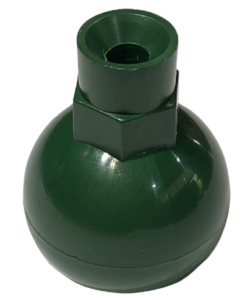

 | UNI0080 | 0° | 18.55 | 26.12 |

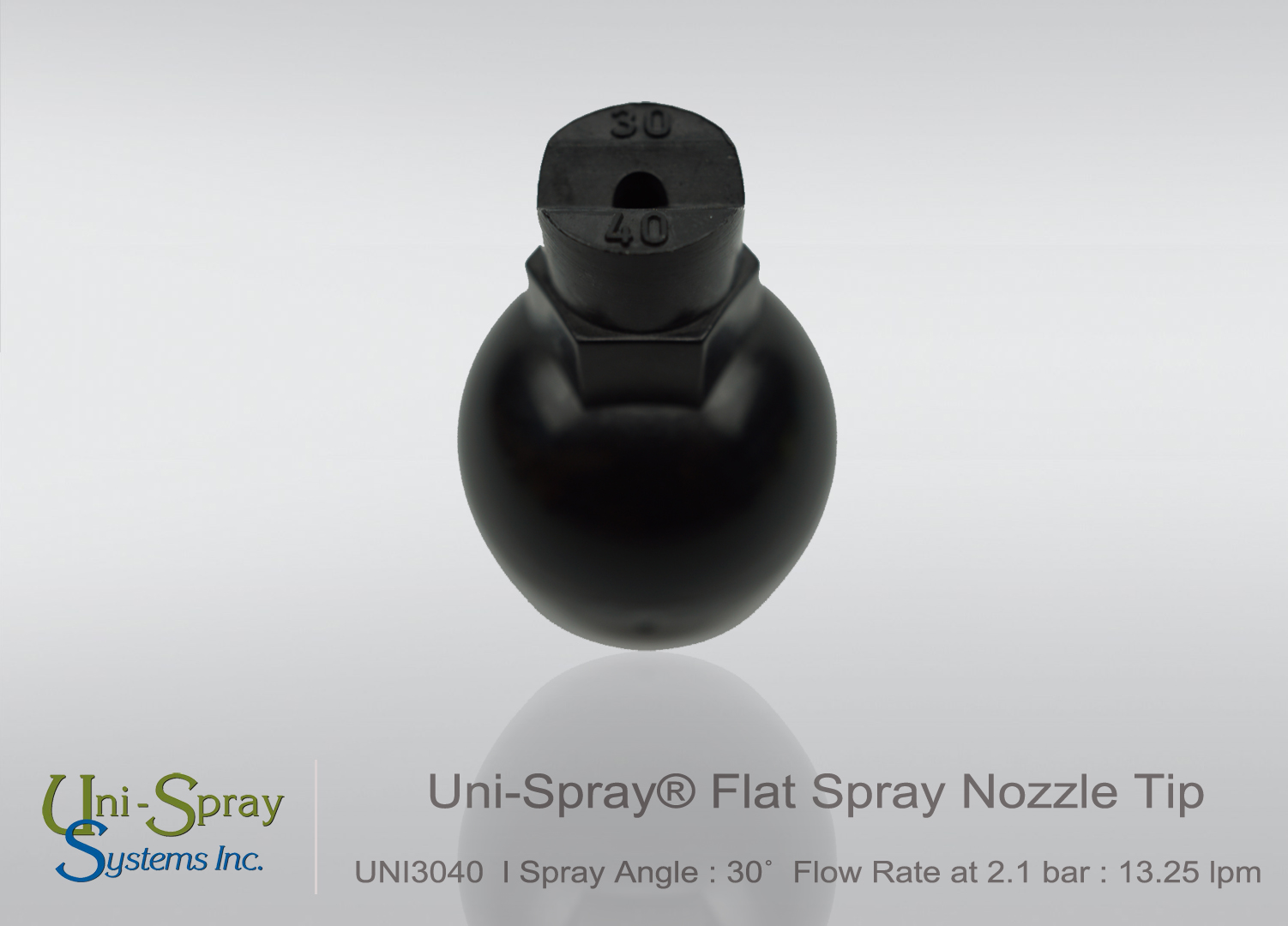

 | UNI3040 | 30° | 9.46 | 13.25 |

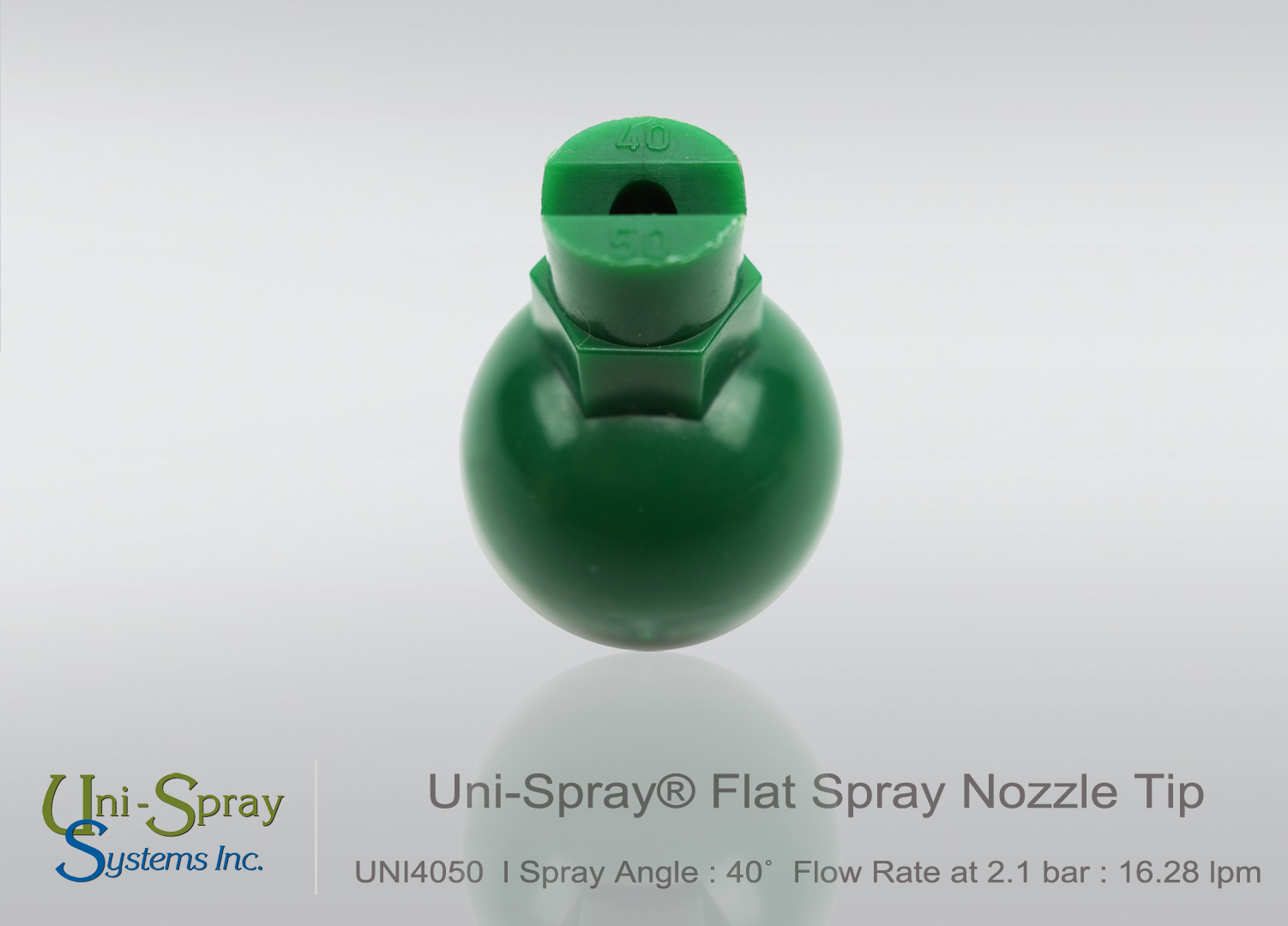

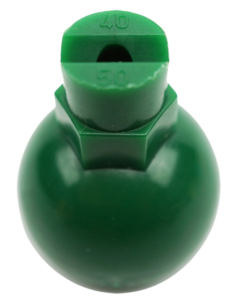

 | UNI4050 | 40° | 11.73 | 16.28 |
 | UNI4020 | 40° | 4.54 | 6.44 |

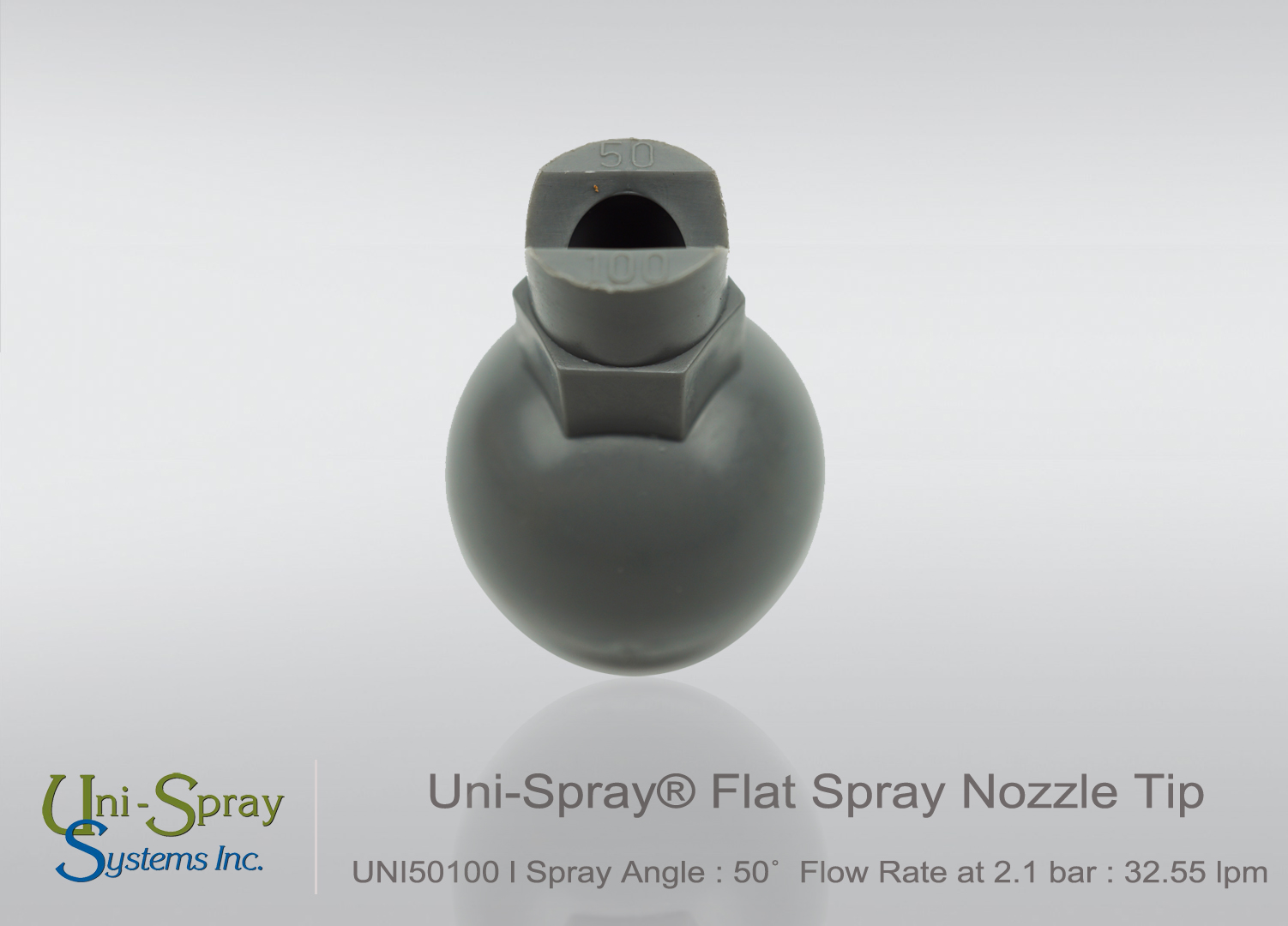

 | UNI50100 | 50° | 23.09 | 32.55 |

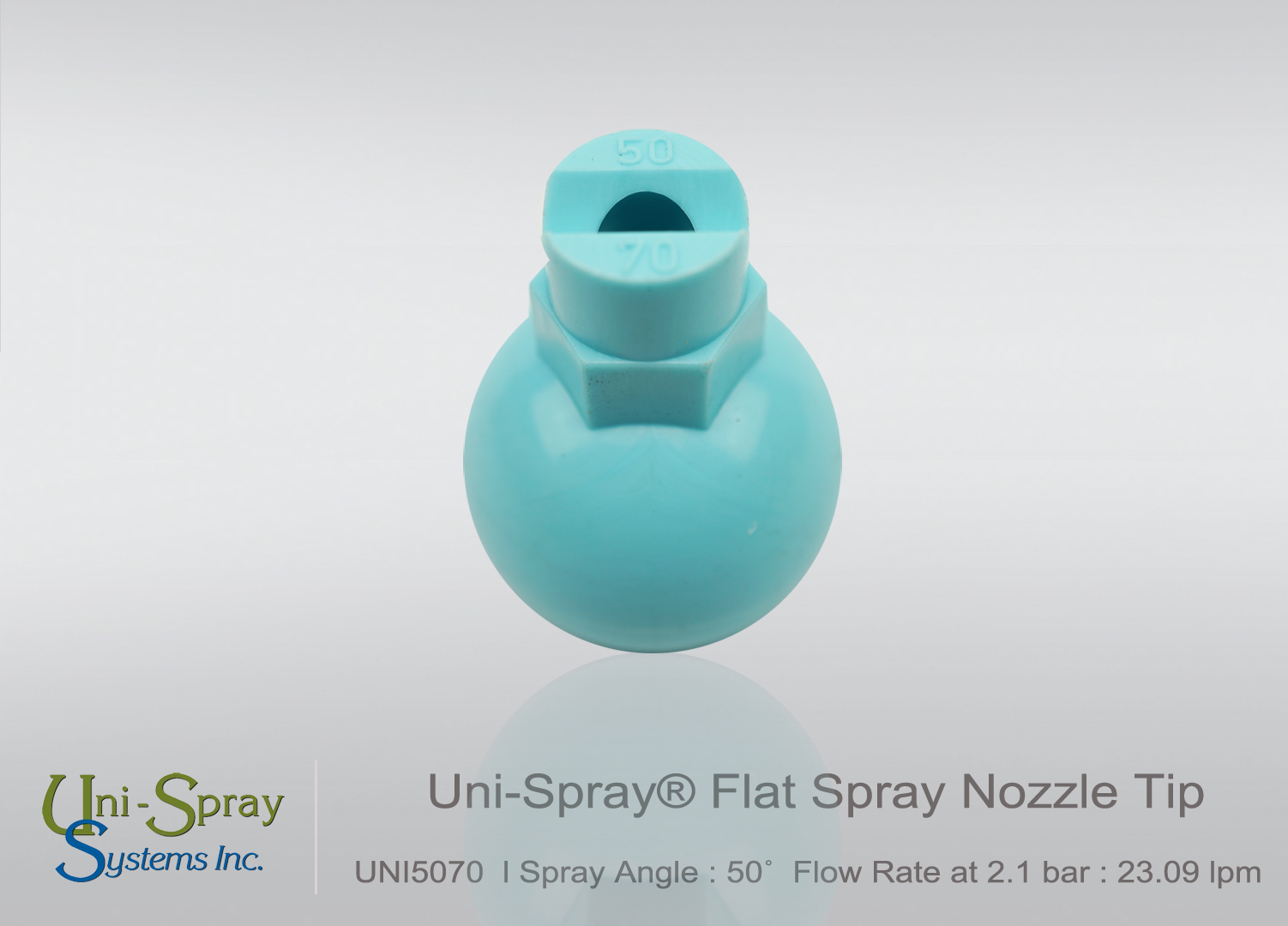

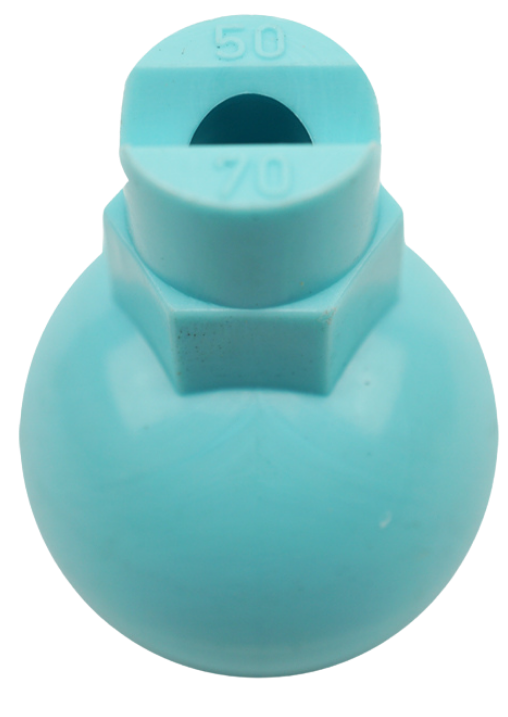

 | UNI5070 | 50° | 16.28 | 23.09 |

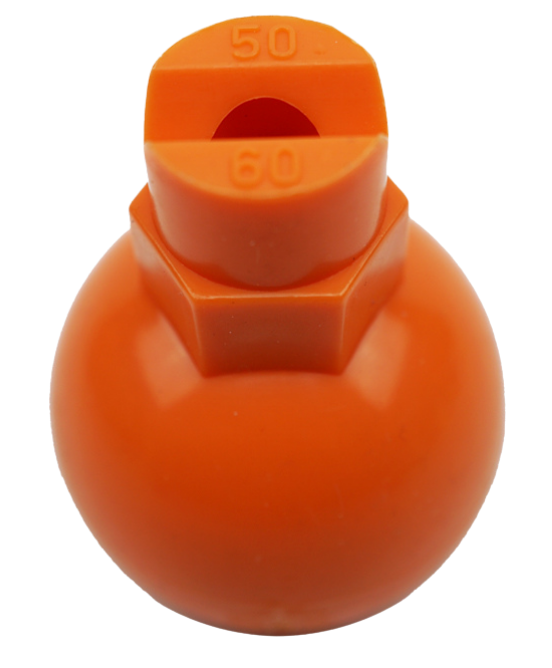

 | UNI5060 | 50° | 14.01 | 19.68 |
 | UNI5050 | 50° | 11.73 | 16.28 |

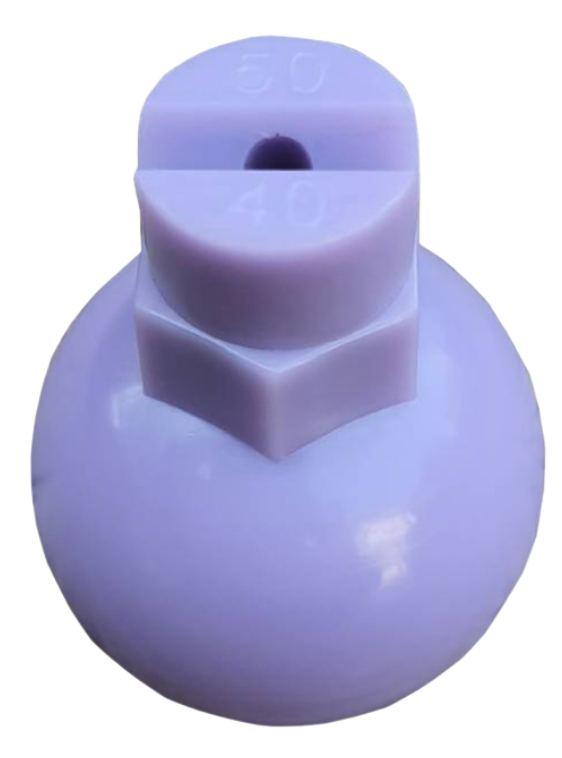

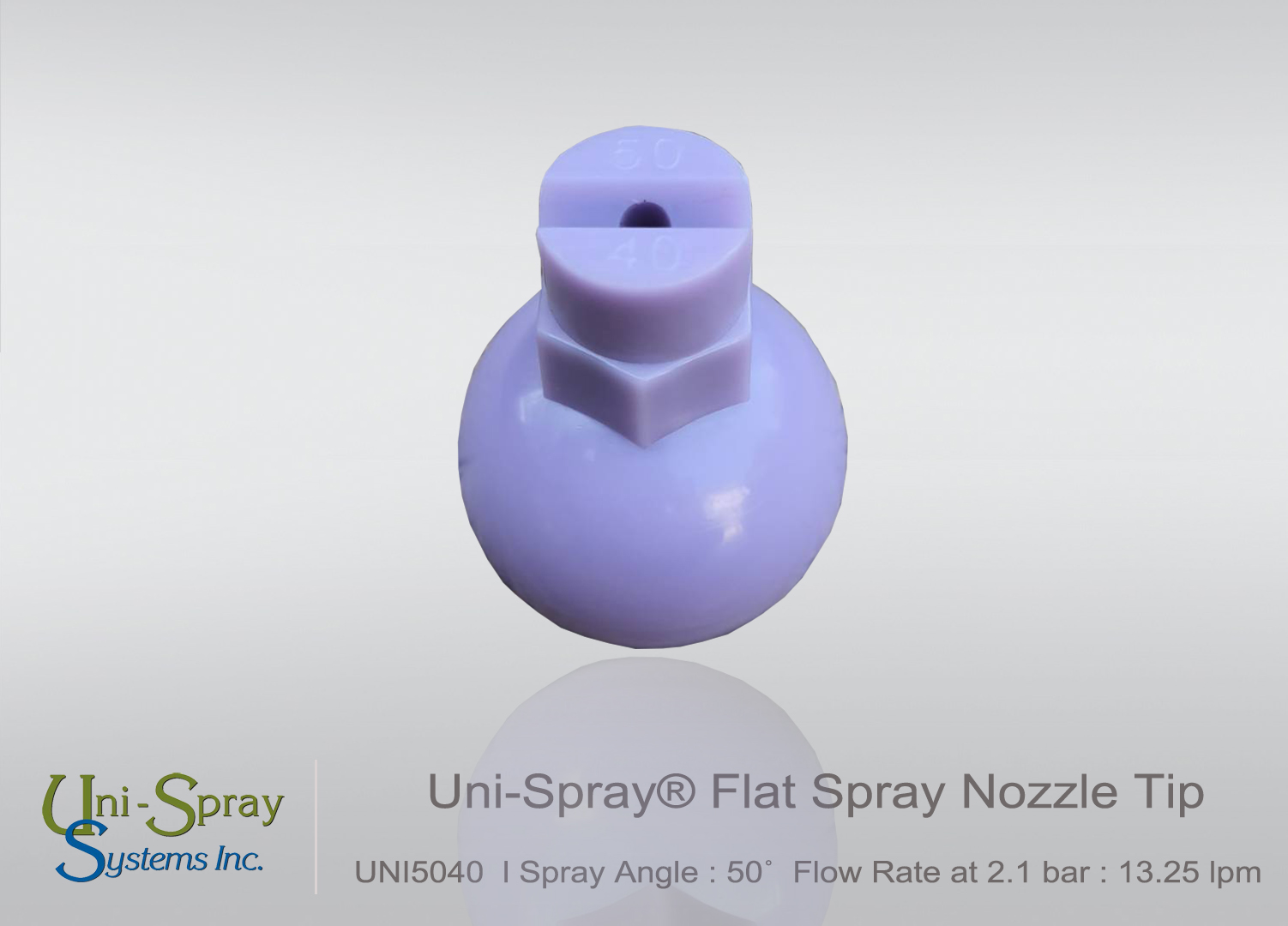

 | UNI5040 | 50° | 9.46 | 13.25 |

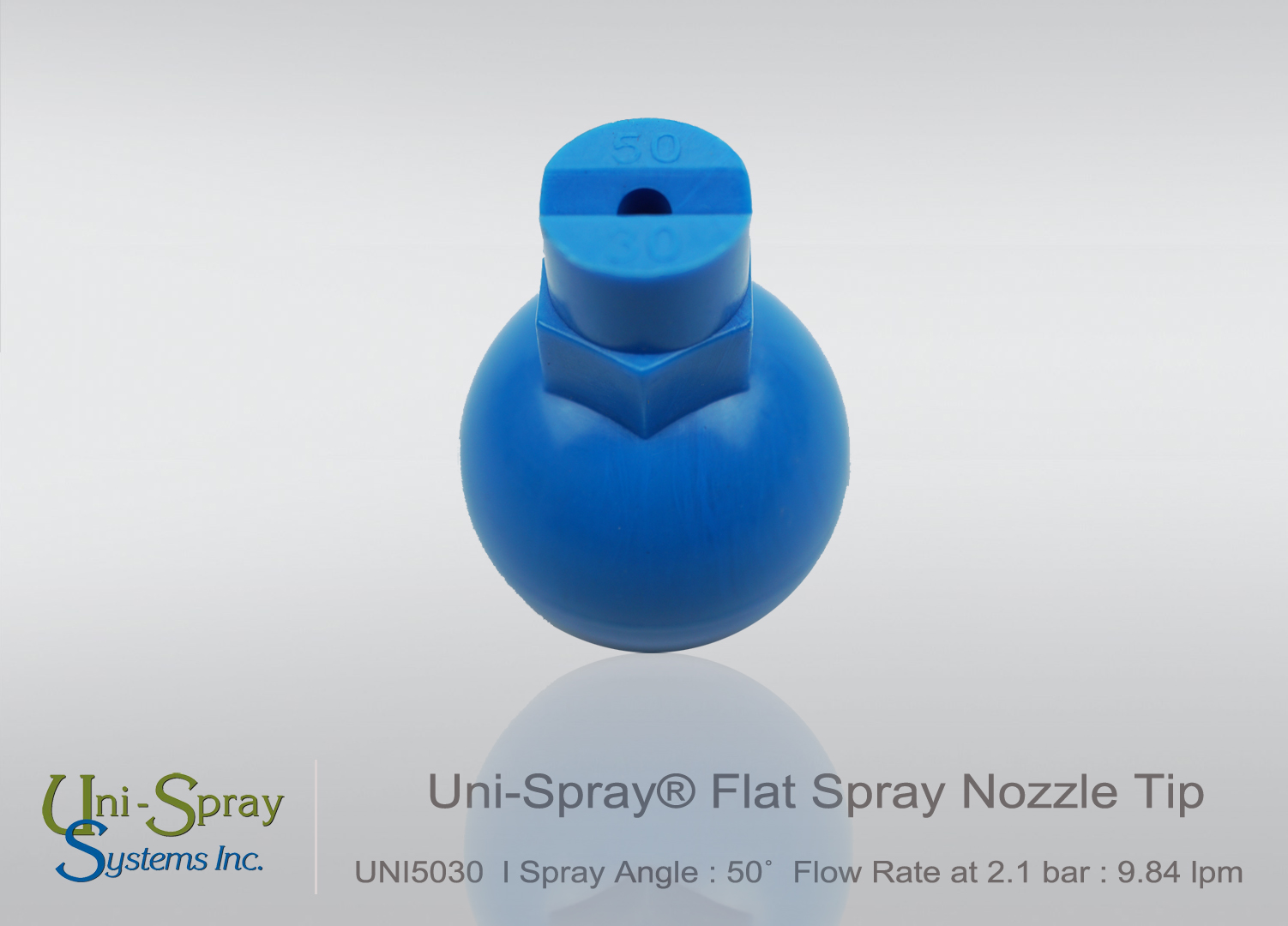

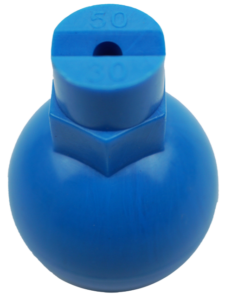

 | UNI5030 | 50° | 6.81 | 9.84 |
| UNI5020 | 50° | 4.54 | 6.44 |

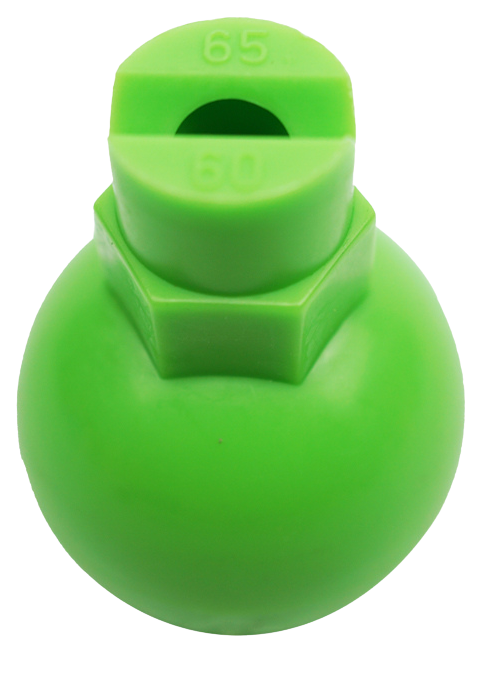

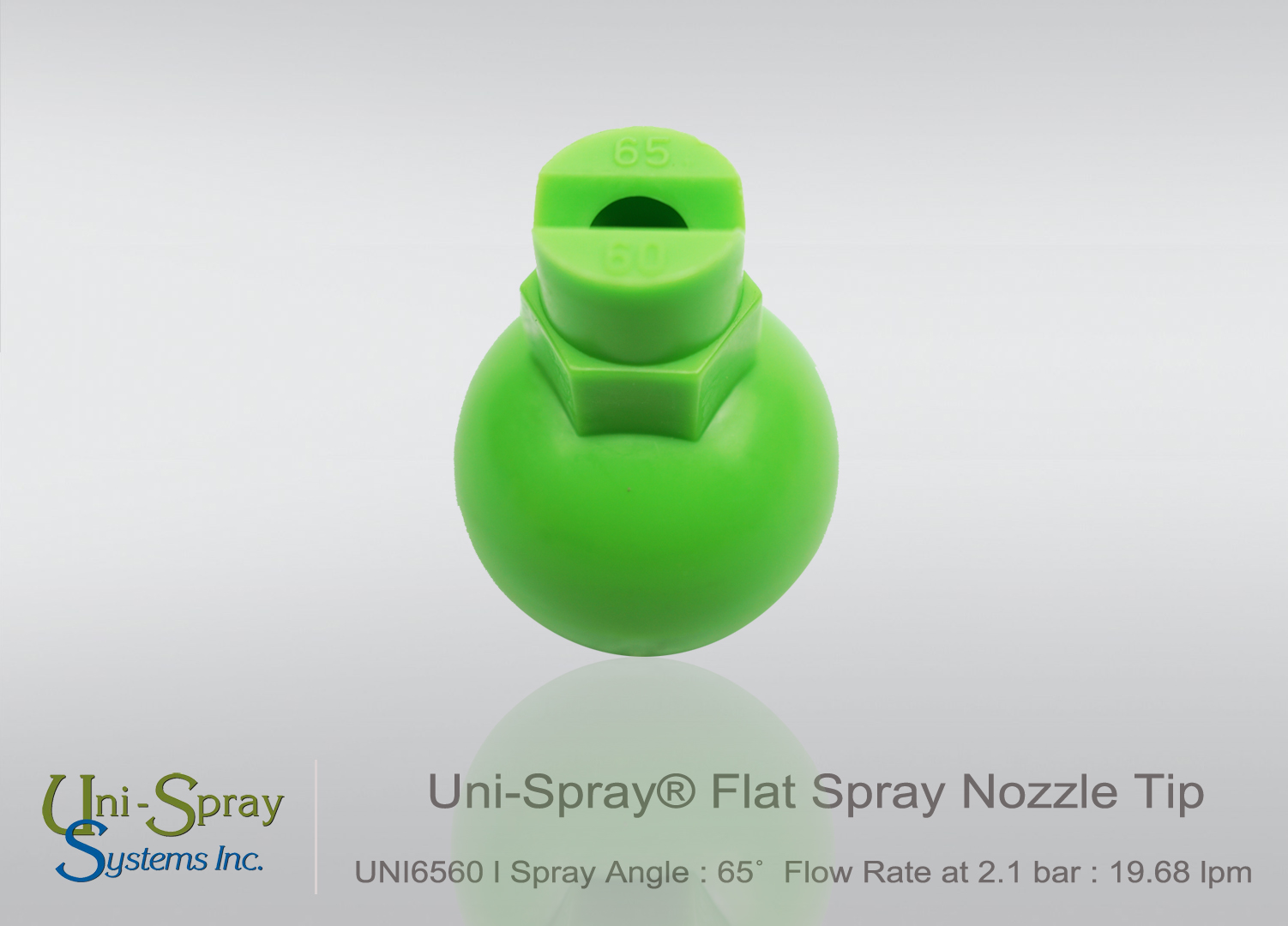

 | UNI6560 | 65° | 14.01 | 19.68 |

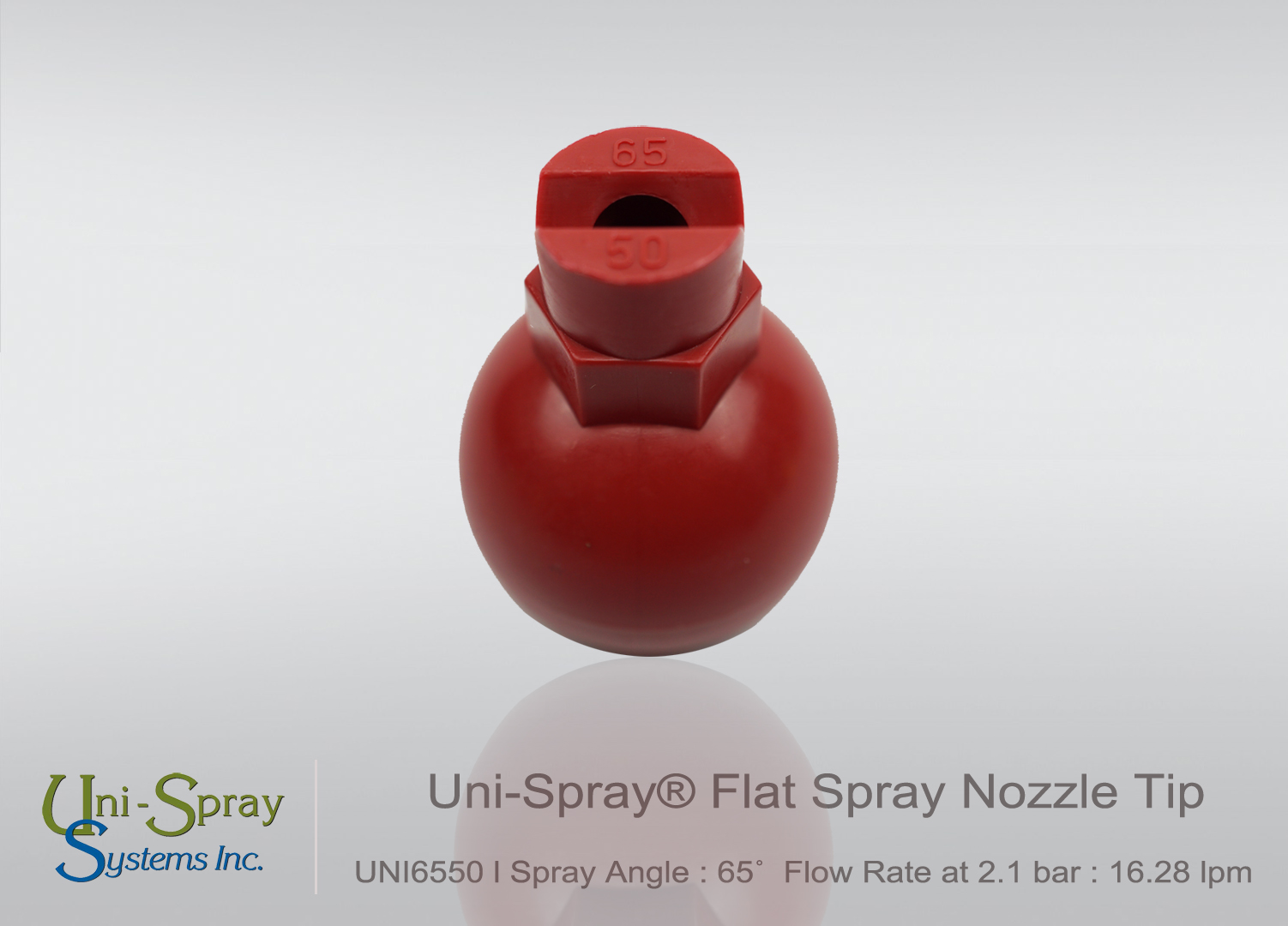

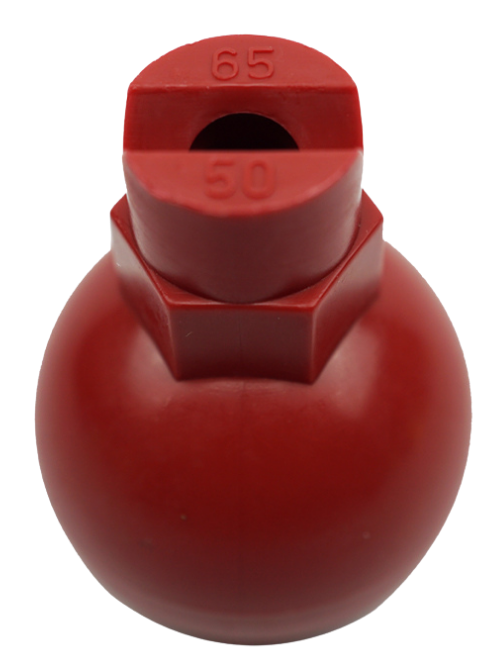

 | UNI6550 | 65° | 11.73 | 16.28 |

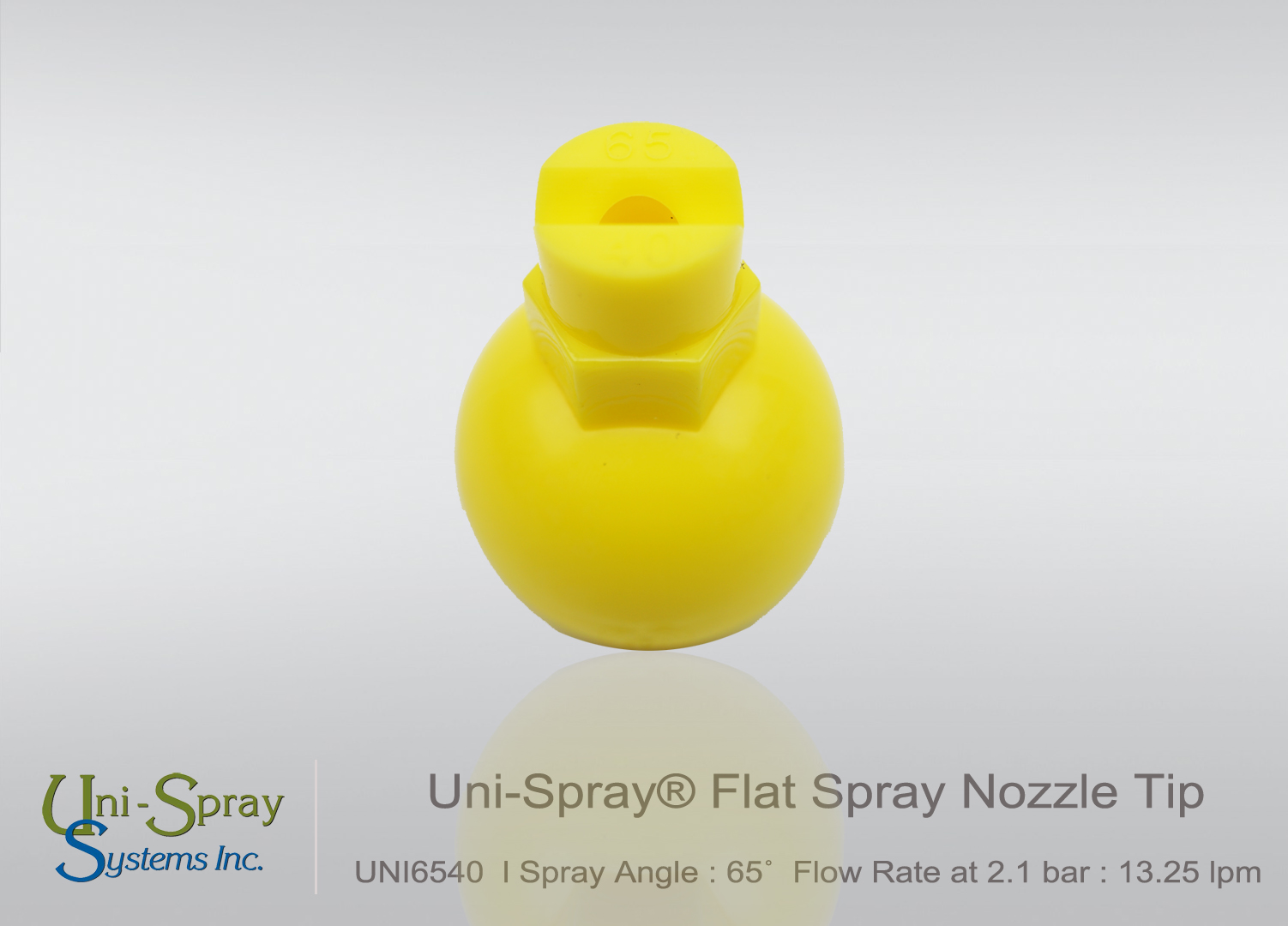

 | UNI6540 | 65° | 9.46 | 13.25 |

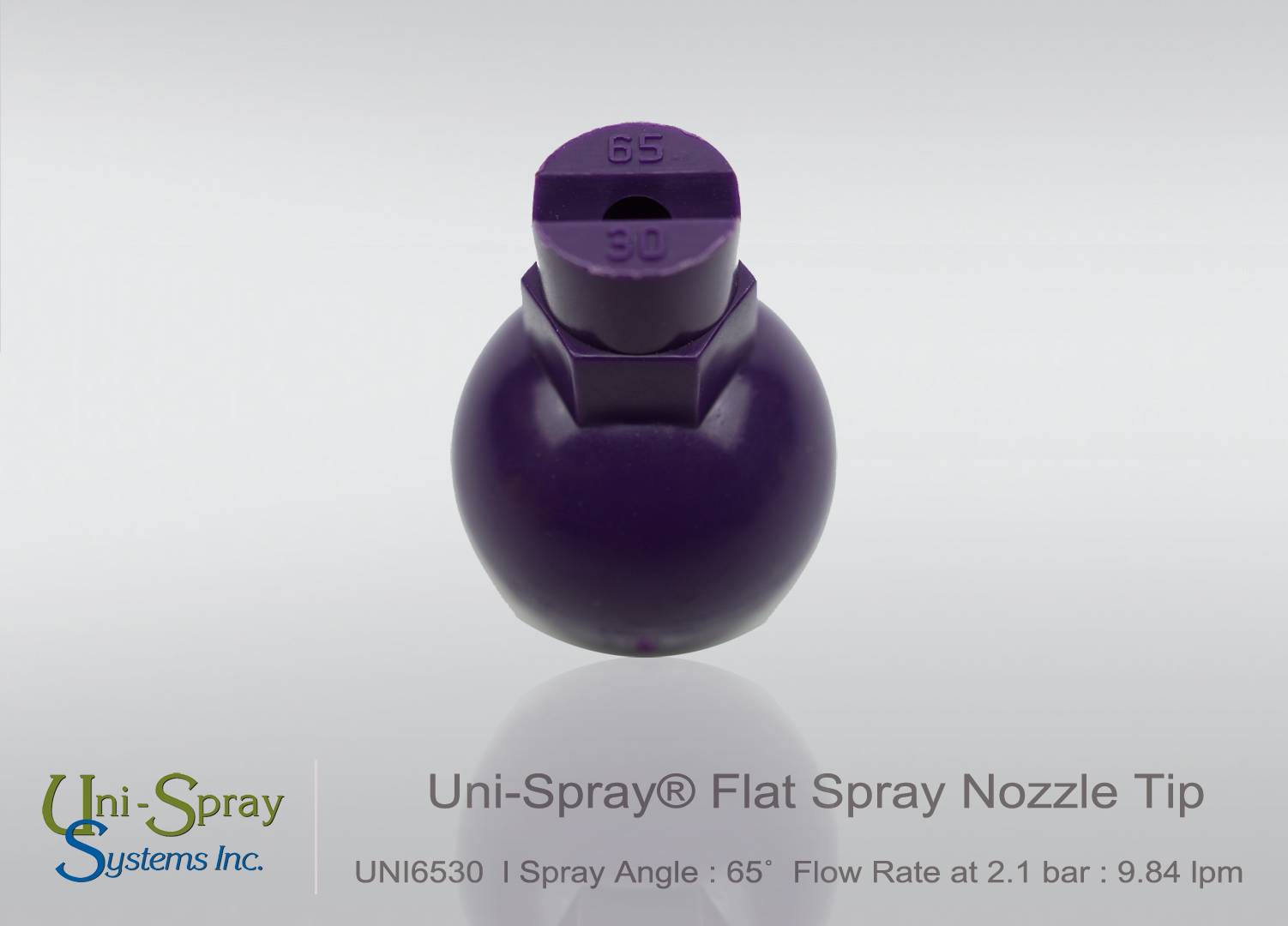

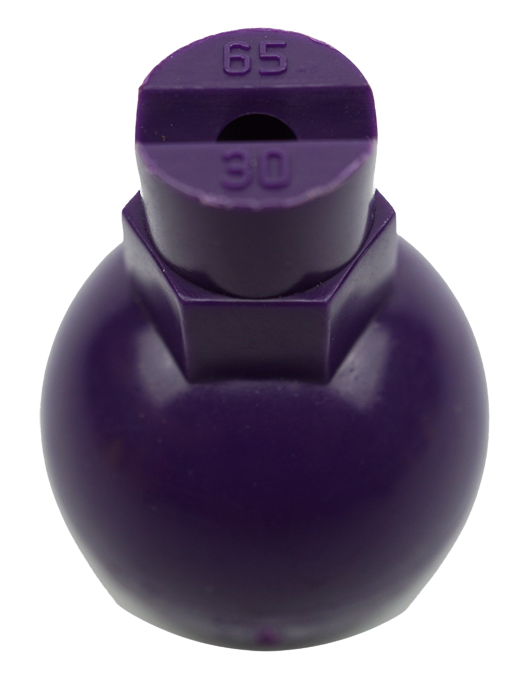

 | UNI6530 | 65° | 6.81 | 9.84 |

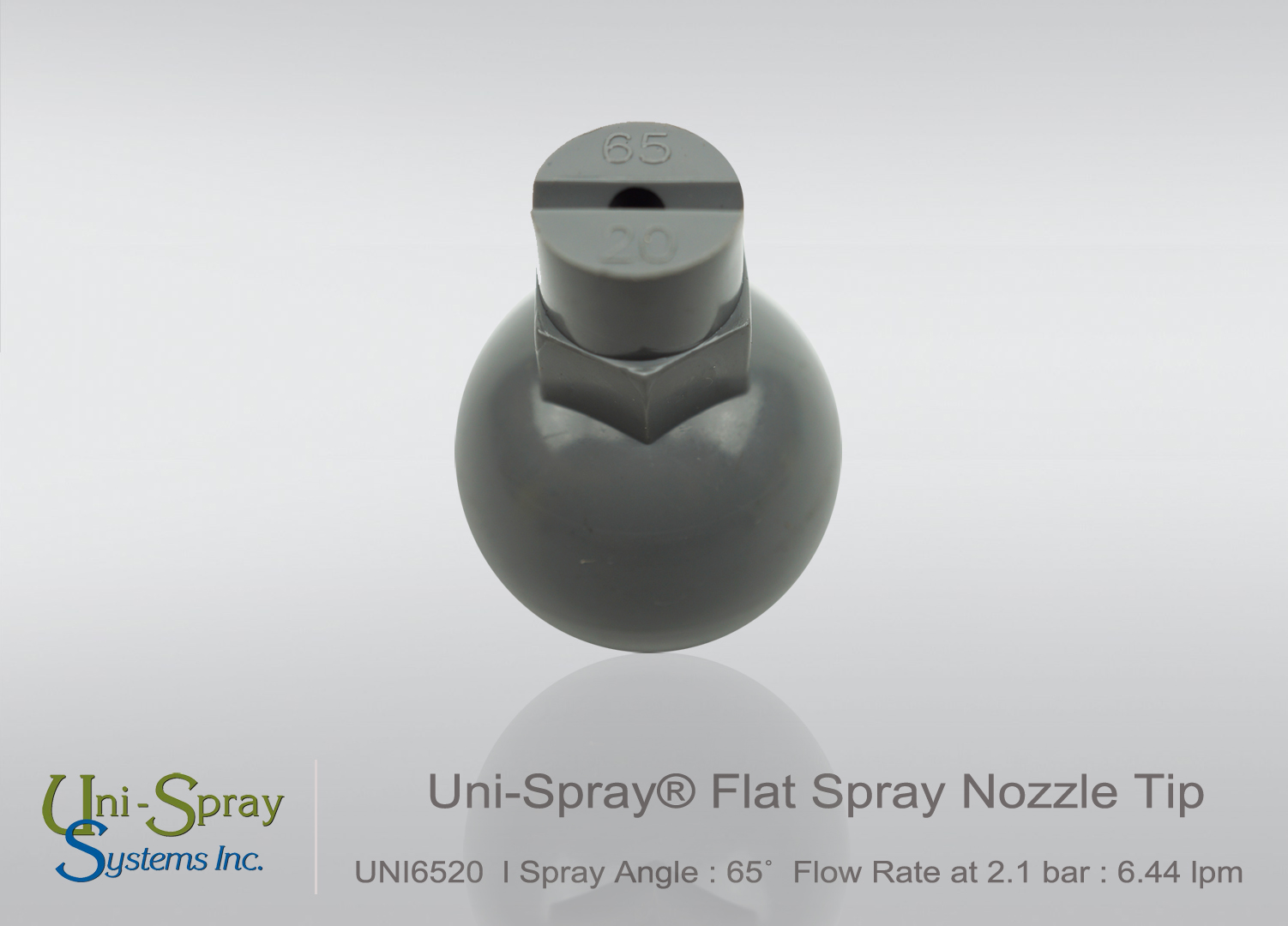

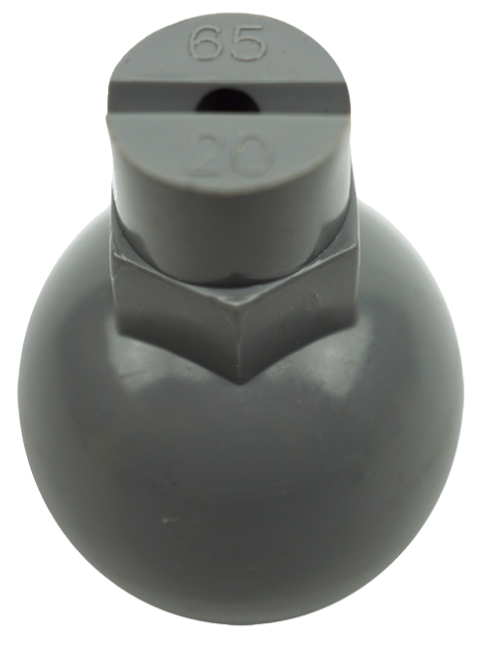

 | UNI6520 | 65° | 4.54 | 6.44 |

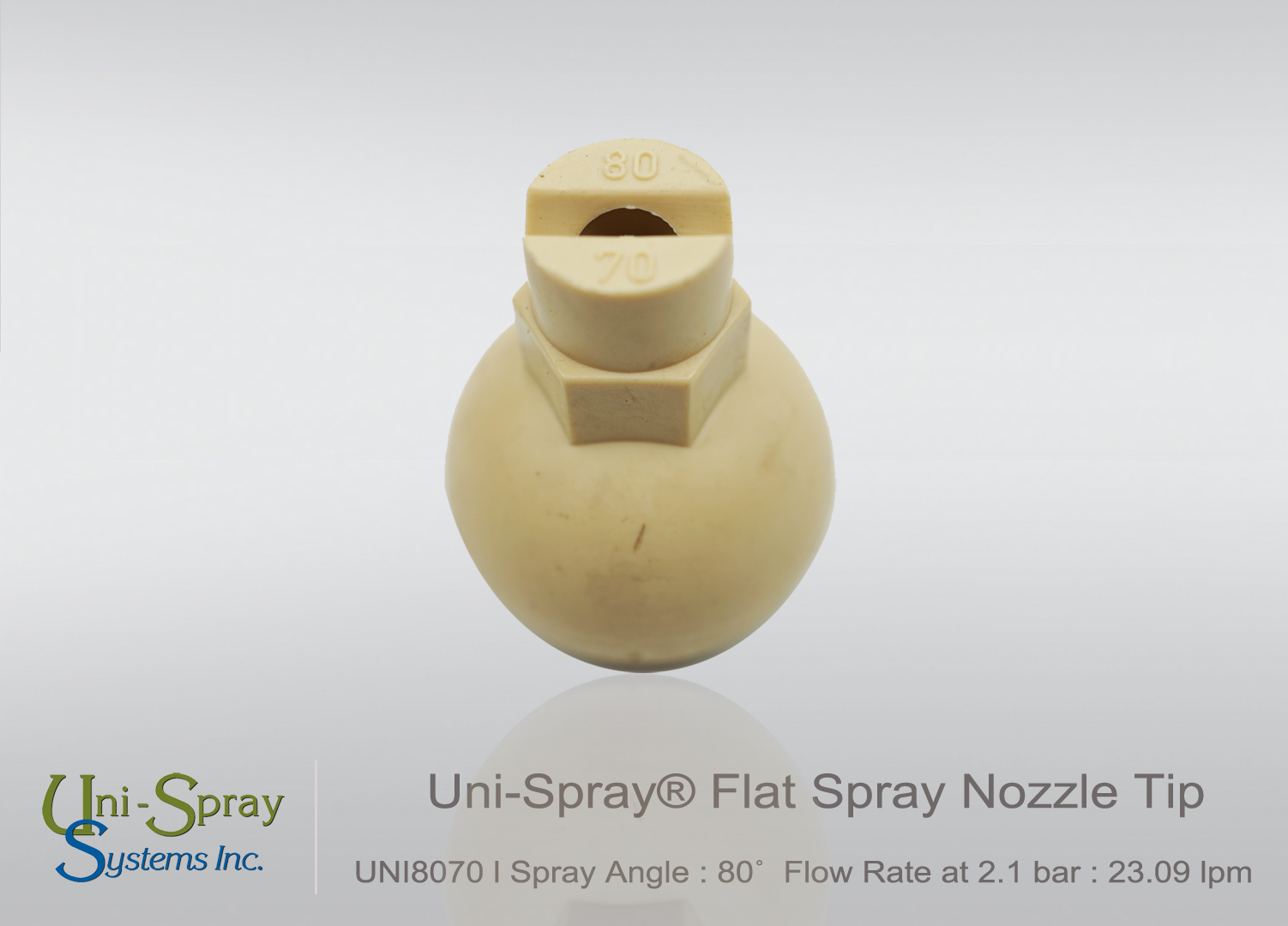

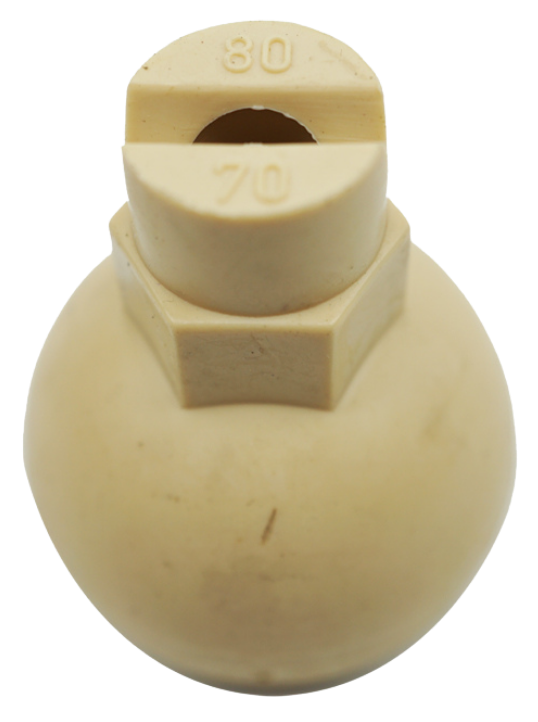

 | UNI8070 | 80° | 16.28 | 23.09 |

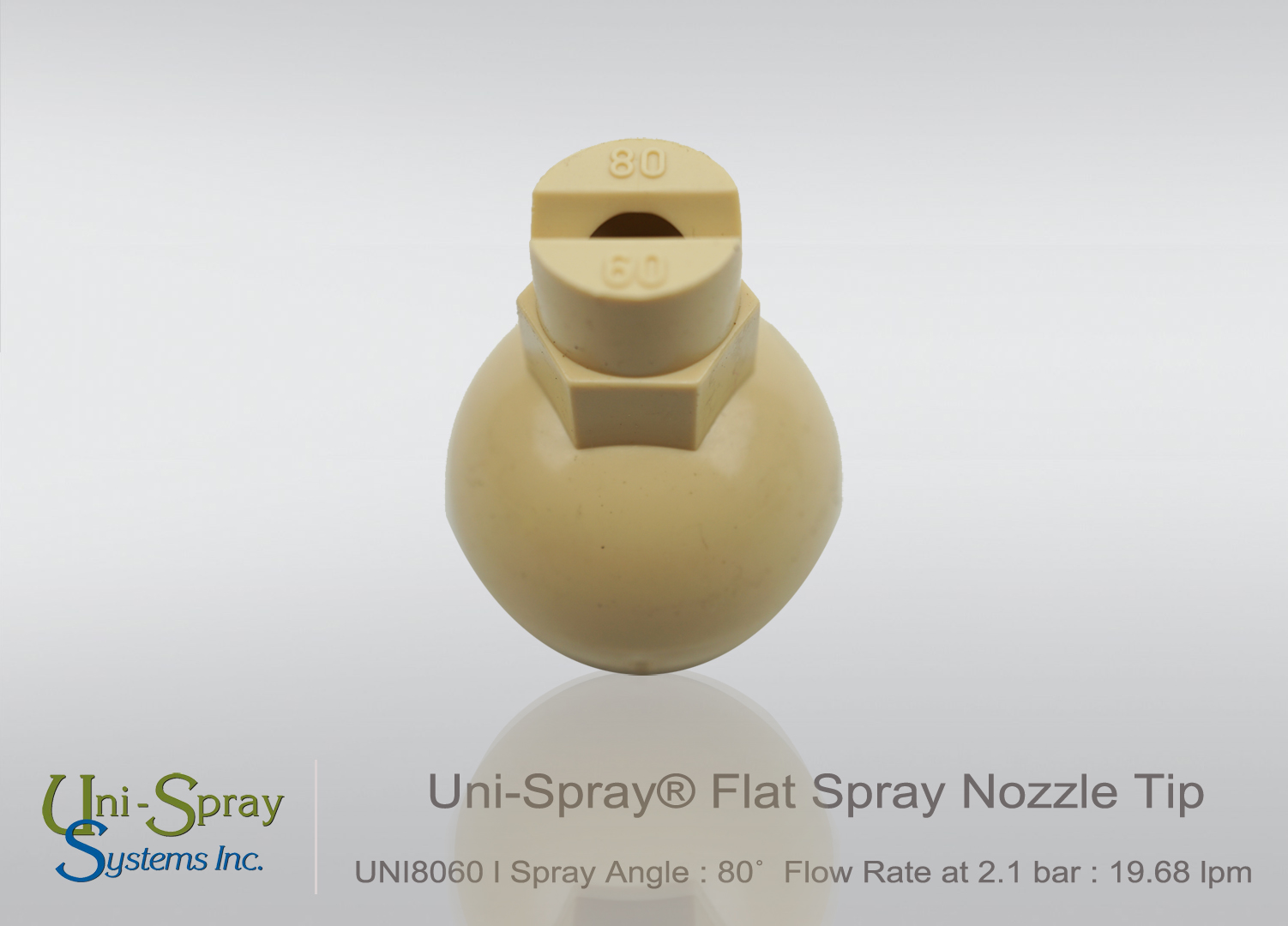

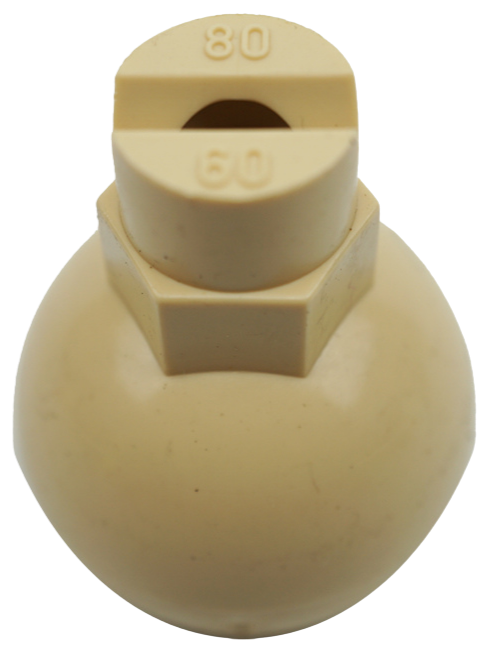

 | UNI8060 | 80° | 14.01 | 19.68 |

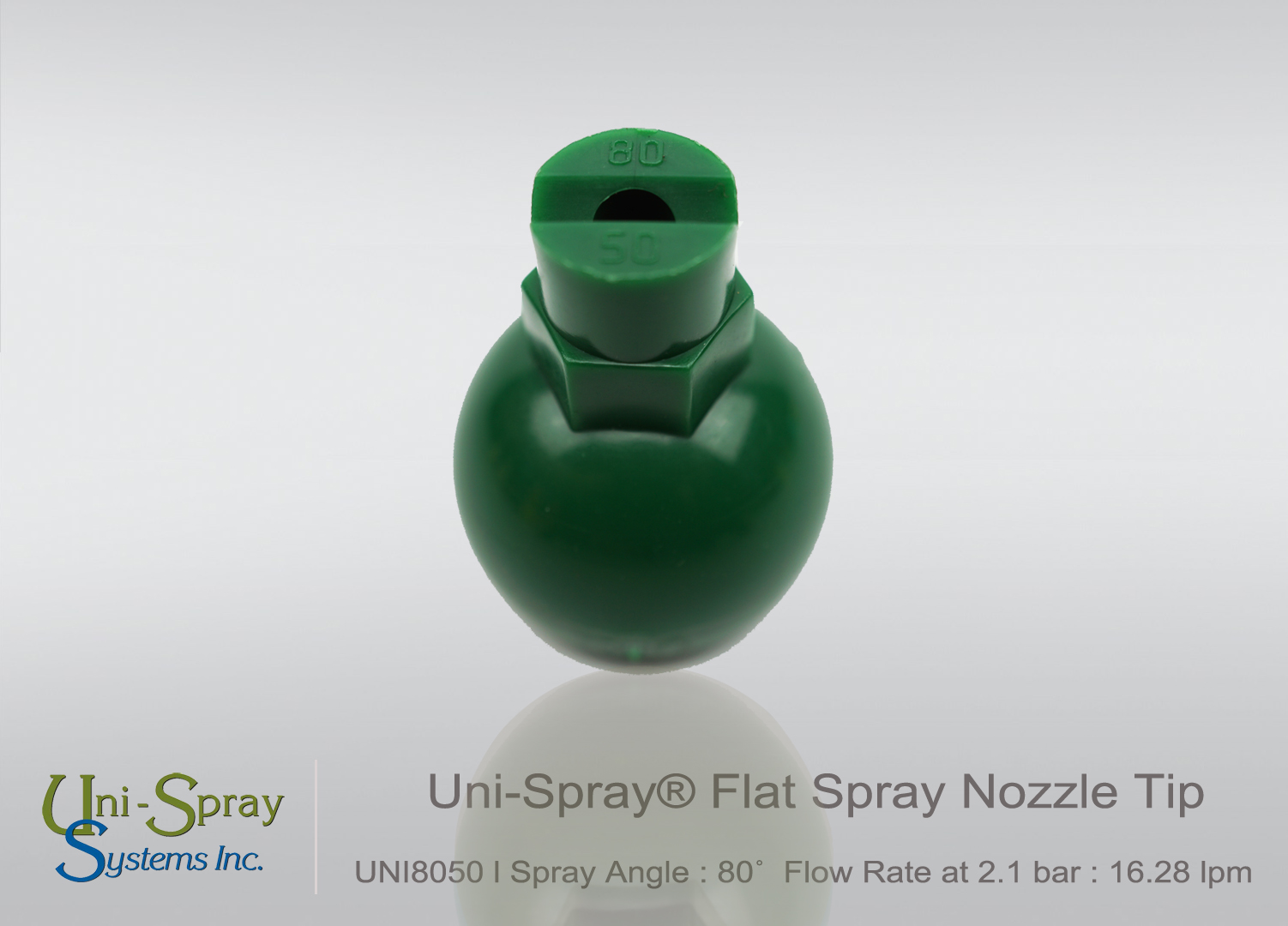

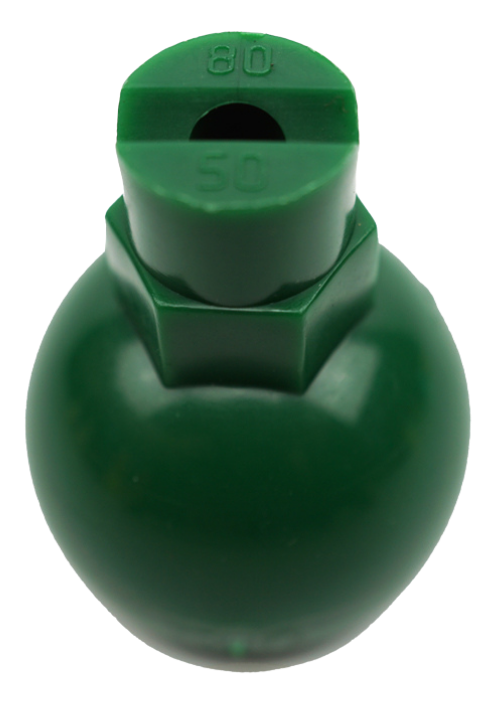

 | UNI8050 | 80° | 11.73 | 16.28 |

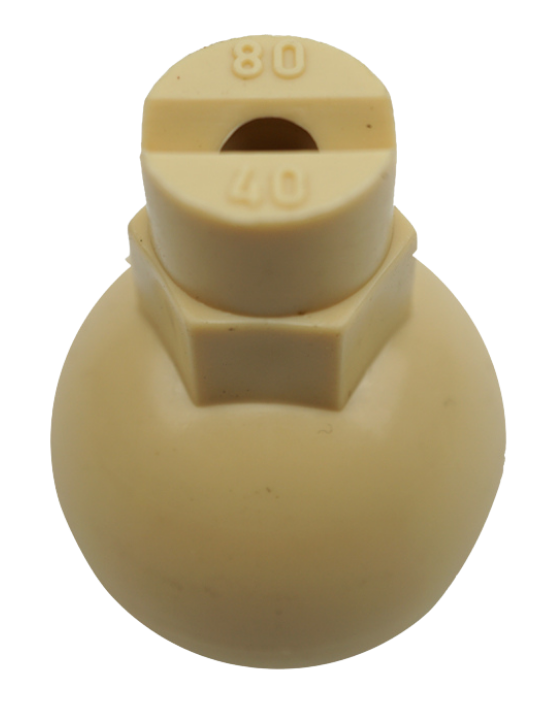

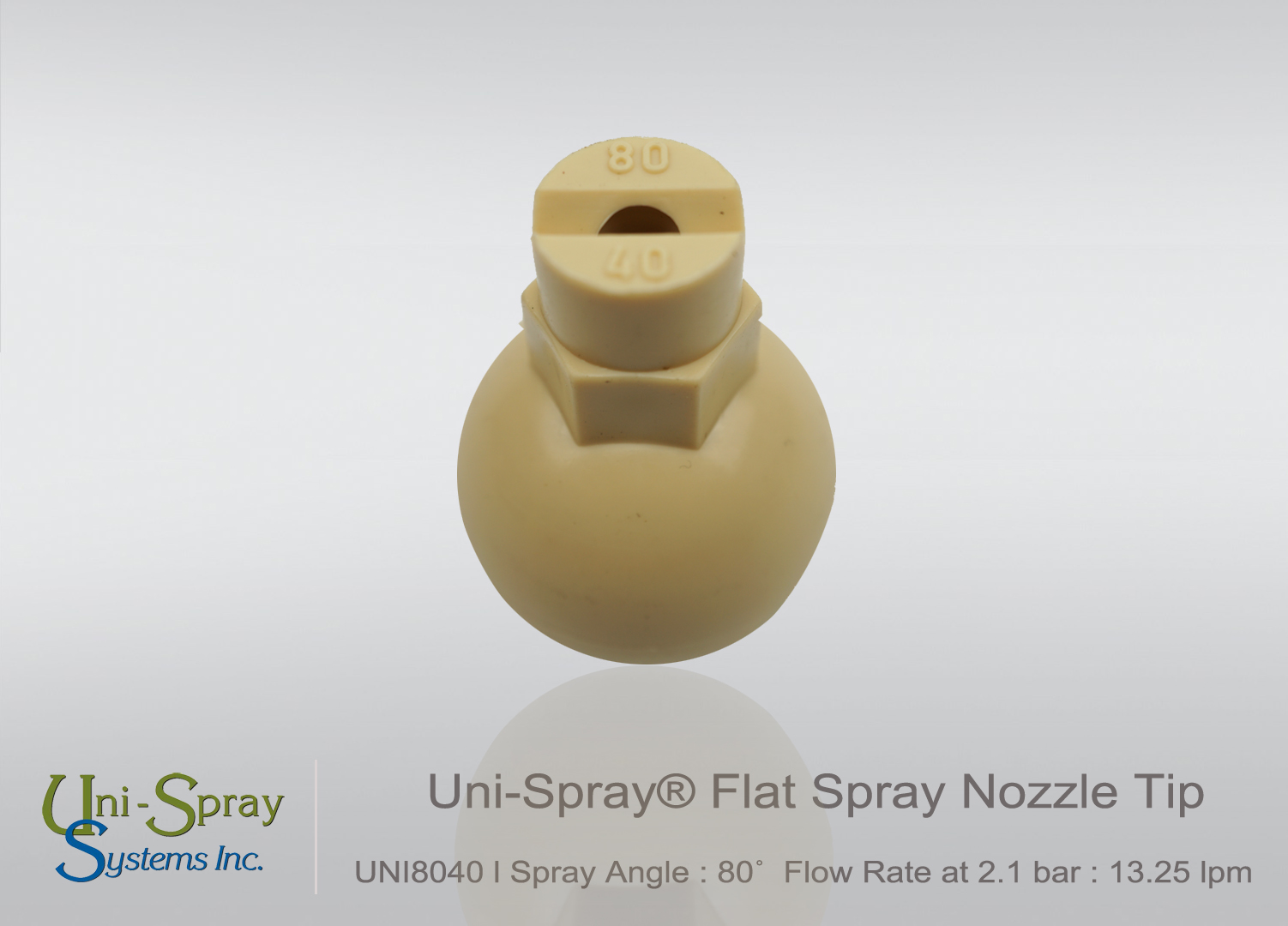

 | UNI8040 | 80° | 9.46 | 13.25 |

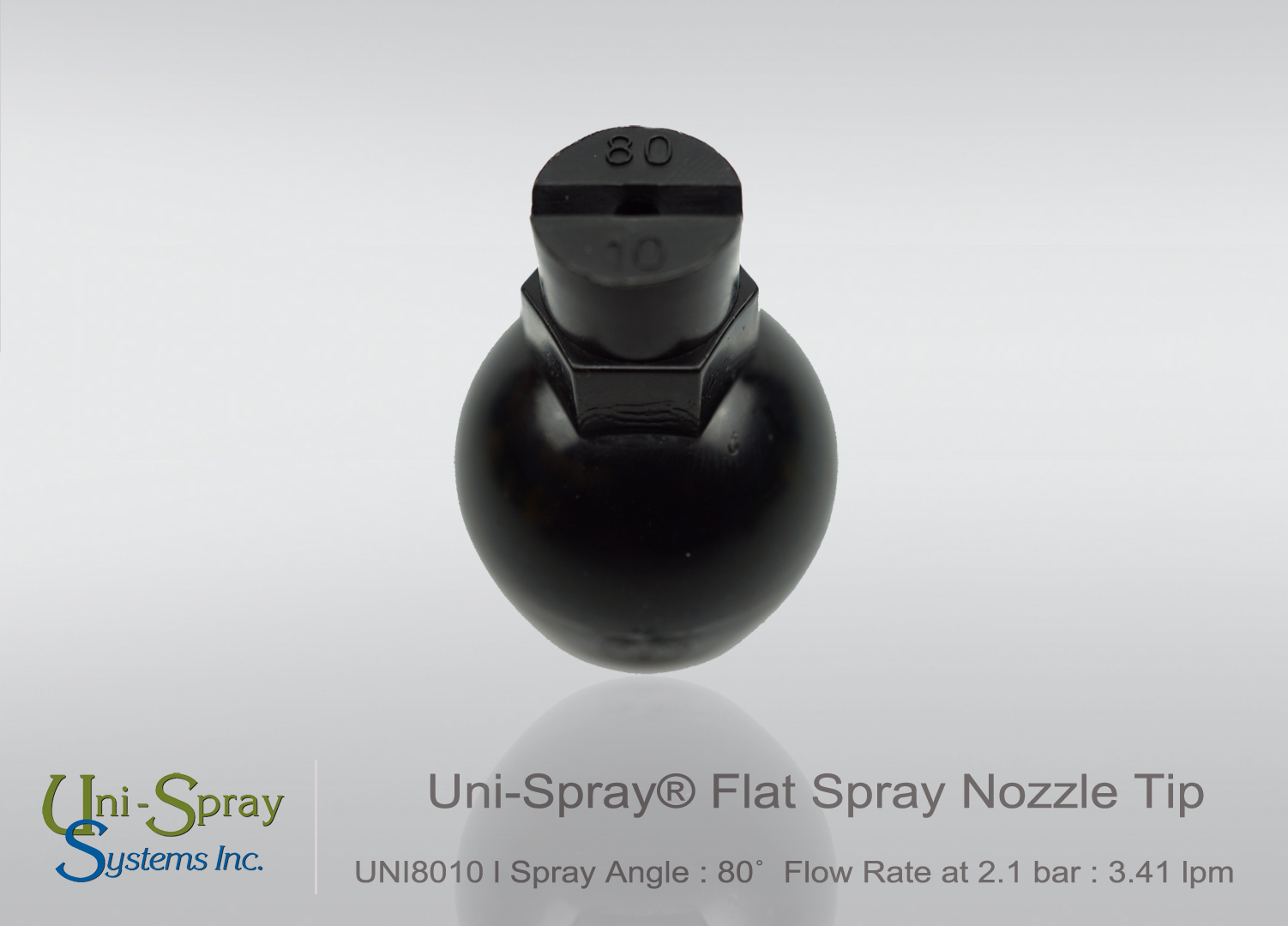

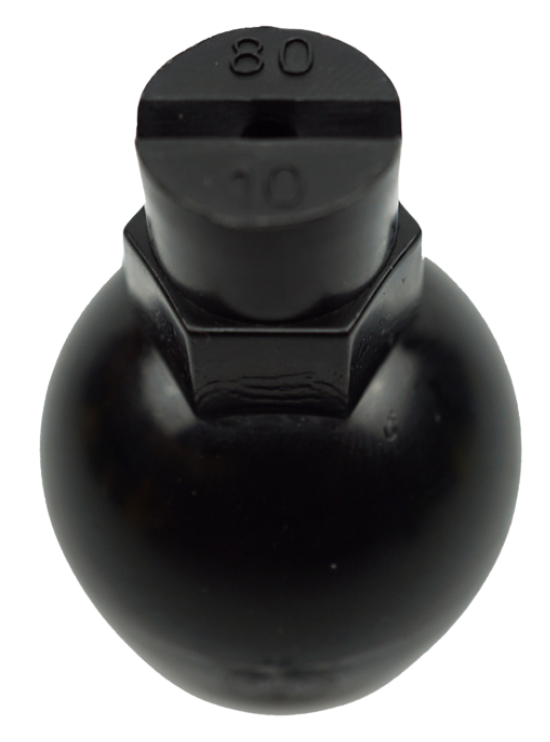

 | UNI8010 | 80° | 2.27 | 3.41 |

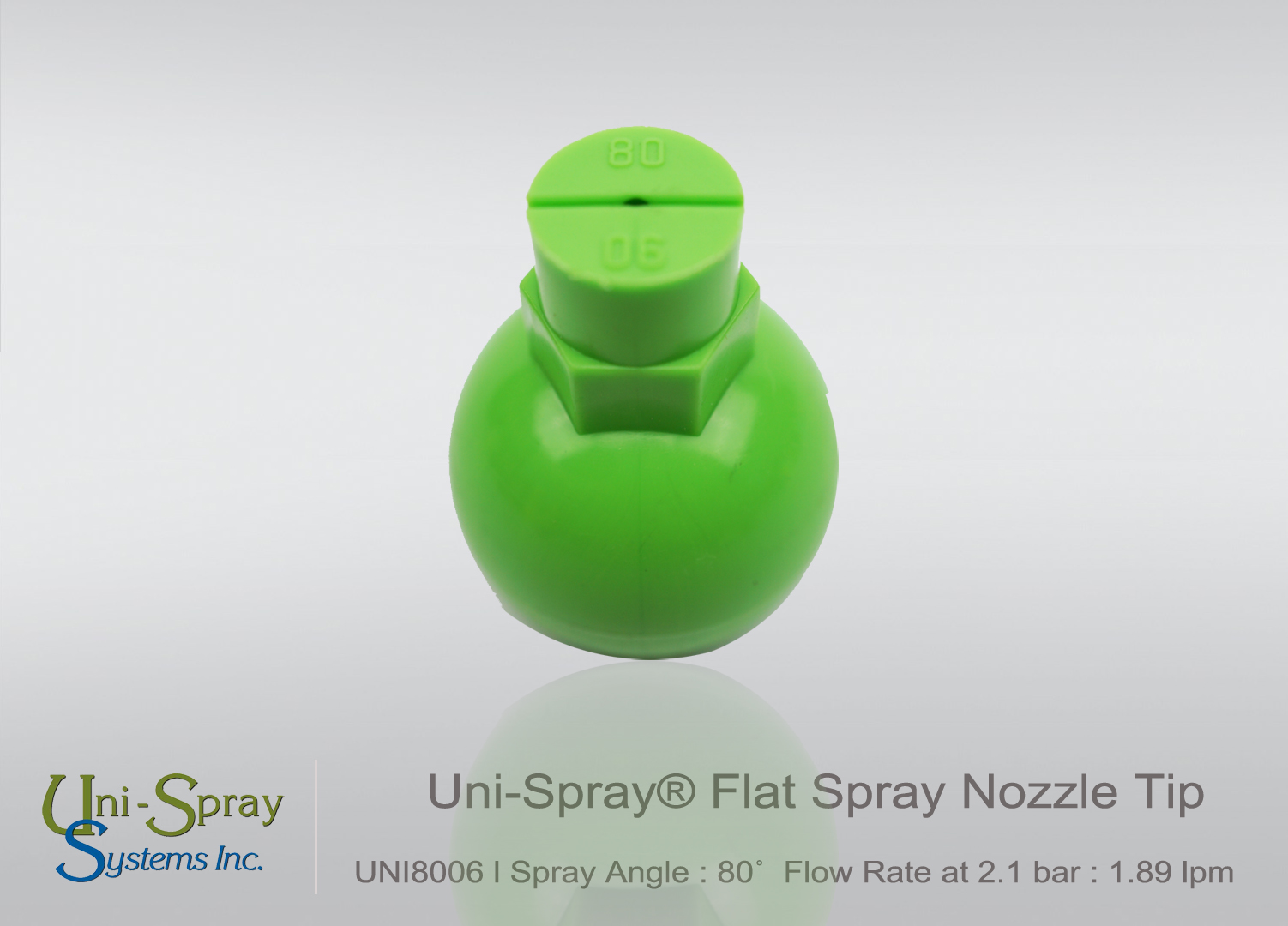

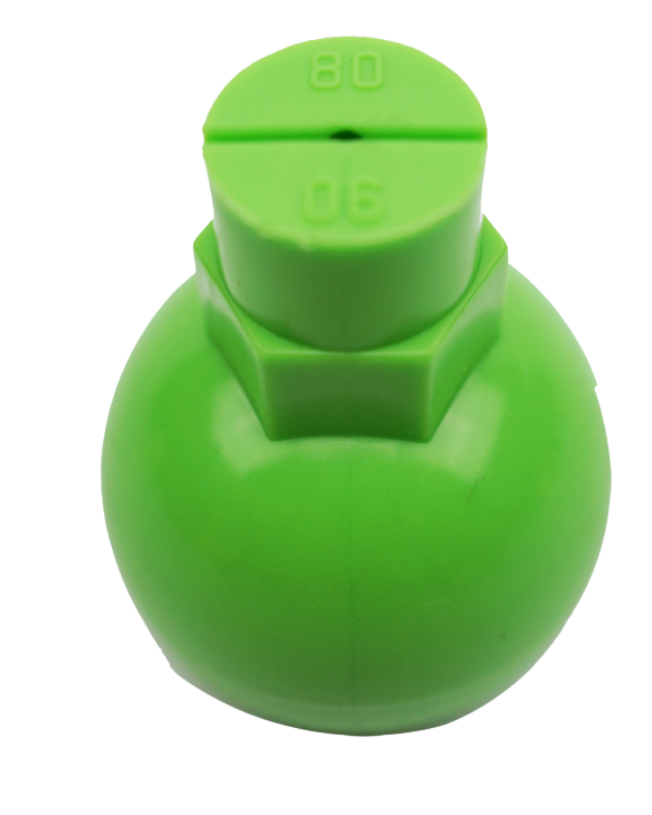

 | UNI8006 | 80° | 1.4 | 1.89 |

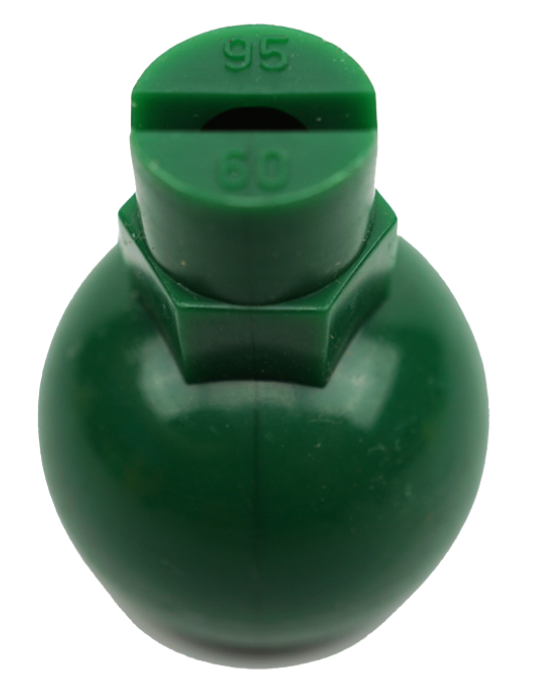

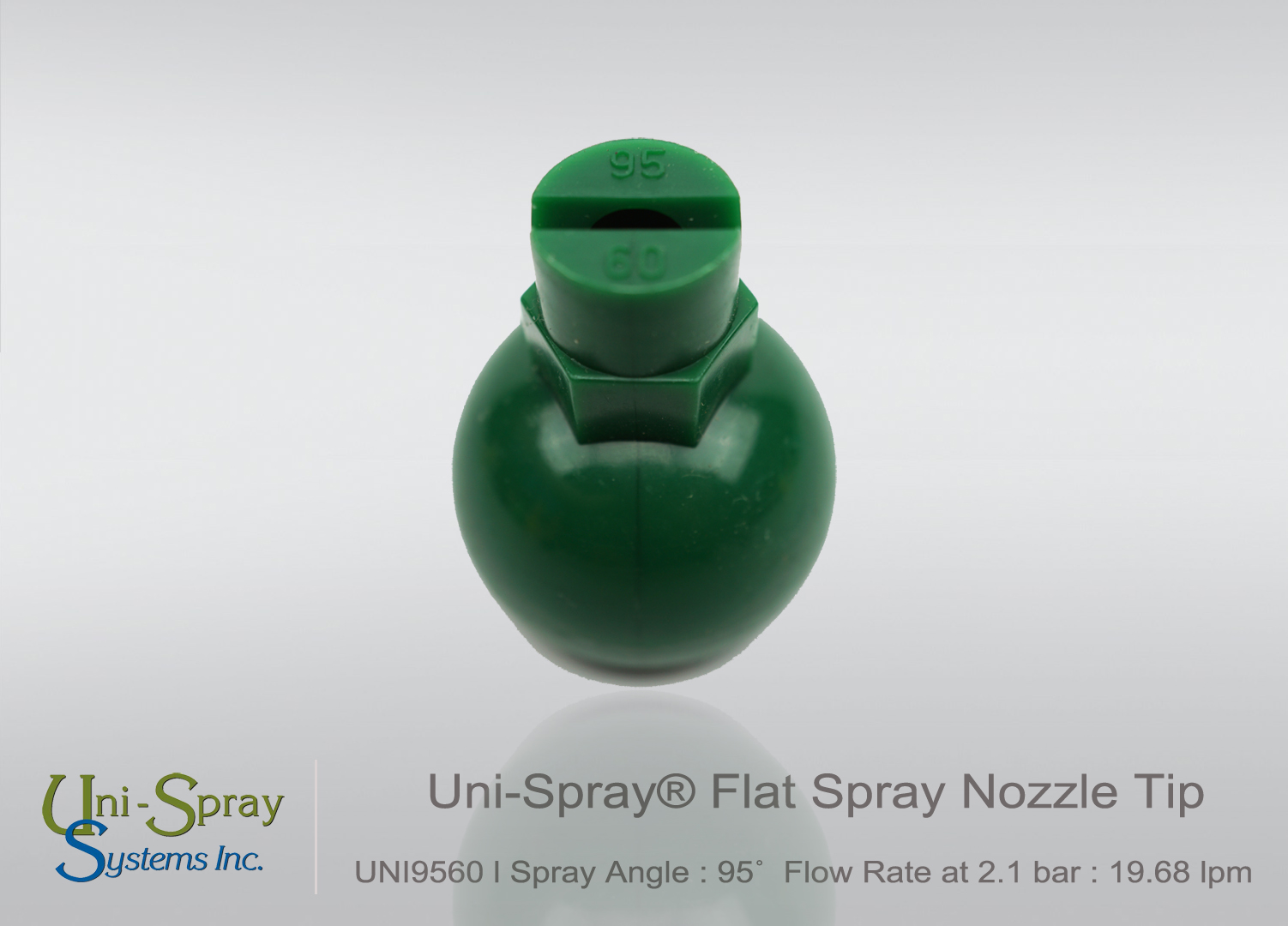

 | UNI9560 | 95° | 14.01 | 19.68 |

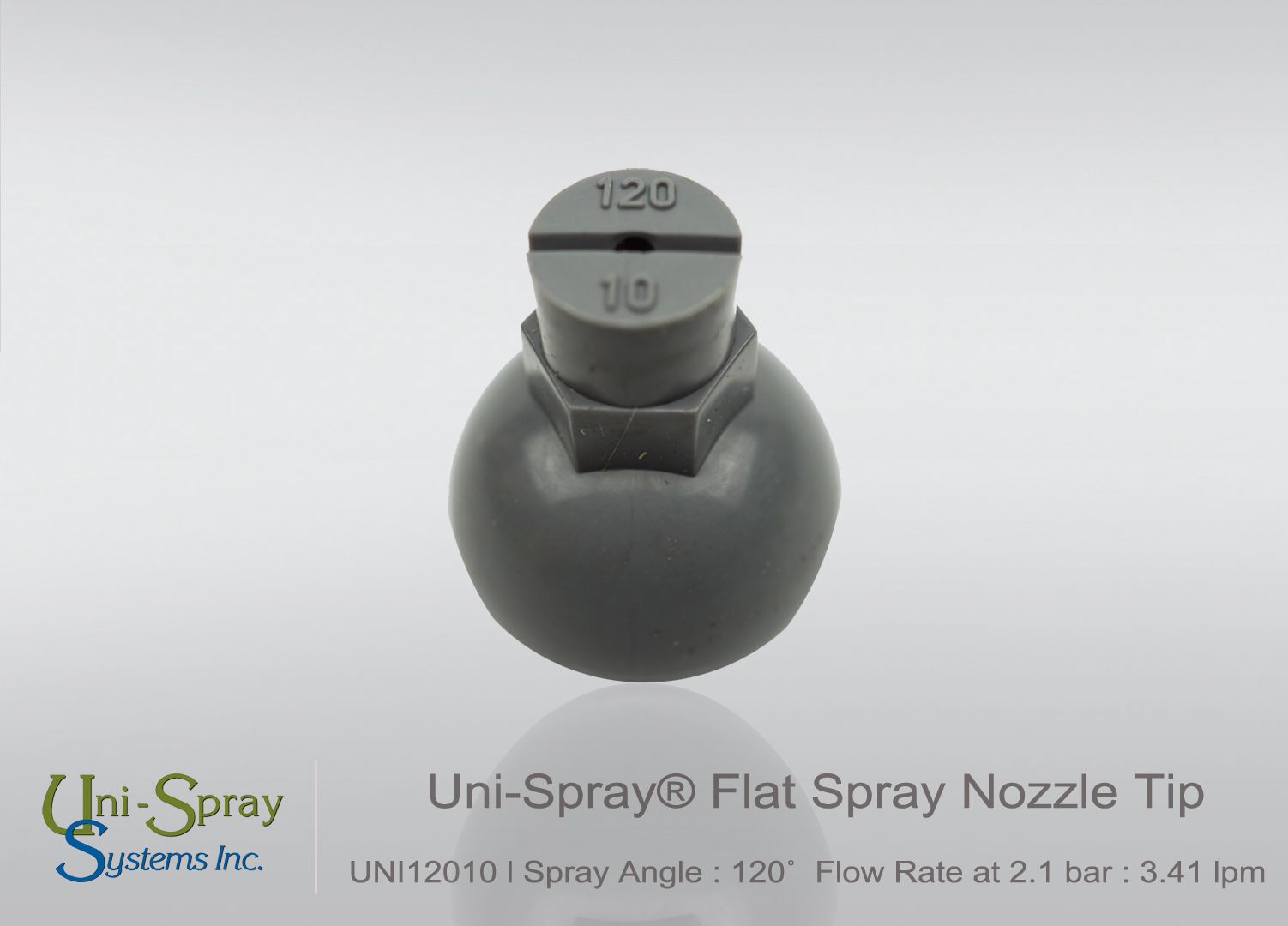

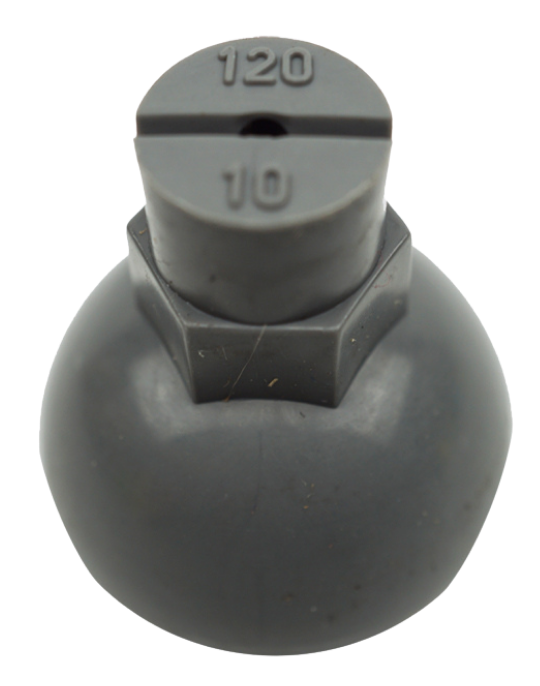

 | UNI12010 | 120° | 2.27 | 3.41 |

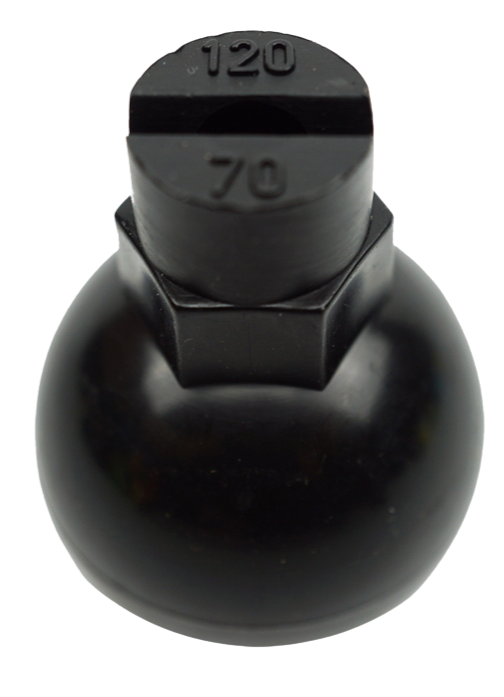

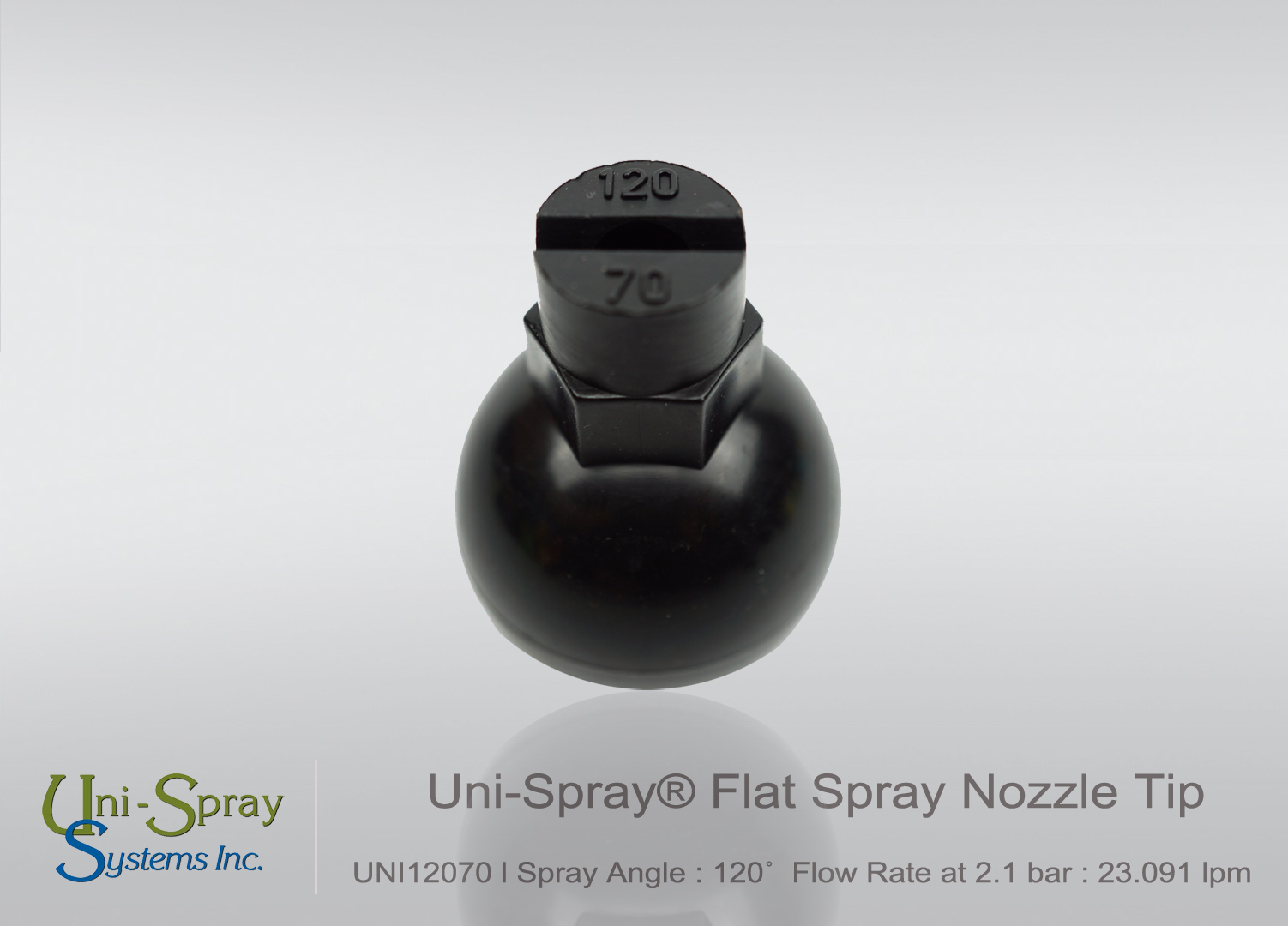

 | UNI12070 | 120° | 16.28 | 23.09 |

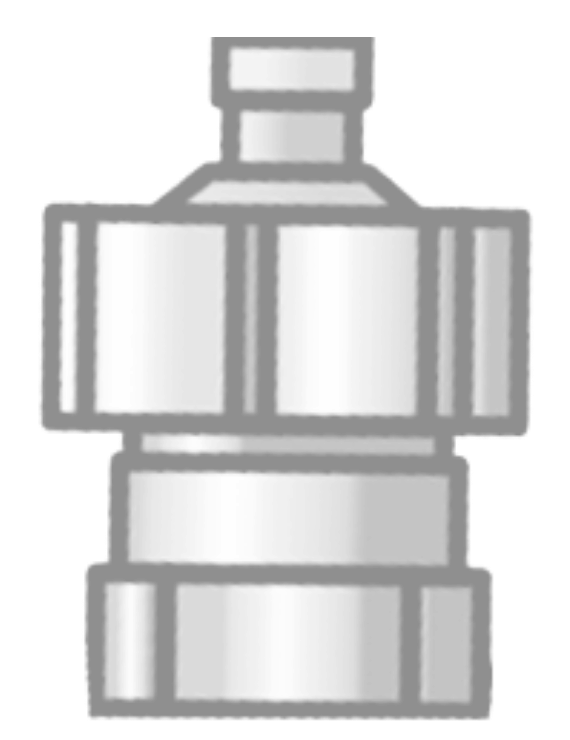

| UNIPLUG | – | – | – |
Applications
- Cleaning and washing workpieces
- Cleaning conveyor belts and production equipment
- Surface coating and spray painting applications
- Surface preparation before coating
- Chemical spraying in manufacturing processes
- Cooling workpieces and machinery
.
Uni-Spray | A Leading Canadian Provider of Industrial Nozzles and Spray Systems
Uni-Spray Systems Inc. is a leading Canadian manufacturer of industrial nozzles and spray systems. Founded in 1987 in Cambridge, Ontario, the company has over 35 years of experience in developing spray technology for industrial applications. Today, Uni-Spray products are trusted by factories and manufacturers in more than 60 countries worldwide.
Technology Engineered for Industrial Applications
Uni-Spray is committed to continuous research and development, investing in advanced manufacturing technologies to enhance the performance of spray systems across a wide range of industrial processes. Whether for parts cleaning, surface preparation, coating applications, or other precision manufacturing operations, Uni-Spray solutions are designed to deliver superior efficiency, reliability, and consistent performance.
With comprehensive in-house capabilities in design, engineering, and manufacturing, Uni-Spray can quickly respond to the specific requirements of customers across diverse industries. Every product is developed and manufactured under strict quality control standards, ensuring exceptional quality, dependable performance, and consistent results in every application.
Uni-Spray Solutions
- Industrial Spray Nozzles
(Flat Spray, Full Cone, Hollow Cone, Atomizing Nozzles) - Industrial Cleaning Nozzles & Washing Systems
(Pretreatment, Tank Washing, Cleaning Nozzles) - Piping Systems, Manifolds & Accessories
(Headers, Manifolds, Connectors, Filters, Accessories) - Custom Engineering & OEM Manufacturing Services
(Custom Design, Engineering, OEM Manufacturing)
Why Choose Uni-Spray
✅ Certified to ISO 9001:2015 and ISO 14001:2015 standards
✅ Trusted by customers in over 60 countries worldwide
✅ Made from high-quality materials with excellent chemical resistance, suitable for heavy-duty industrial applications
✅ Continuously developing innovations to improve efficiency and reduce production costs
✅ Wide range of spray nozzles and accessories available to support every industrial spraying process
Authorized Distributor in Thailand
PP Systems Co., Ltd. is the authorized distributor of Uni-Spray products in Thailand. Our experienced engineering team provides expert consultation, from selecting the most suitable spray nozzles for your application to designing complete spray systems and offering technical support. We are committed to helping customers achieve maximum performance and efficiency in every production process.
